D6504-S12-S12-SS

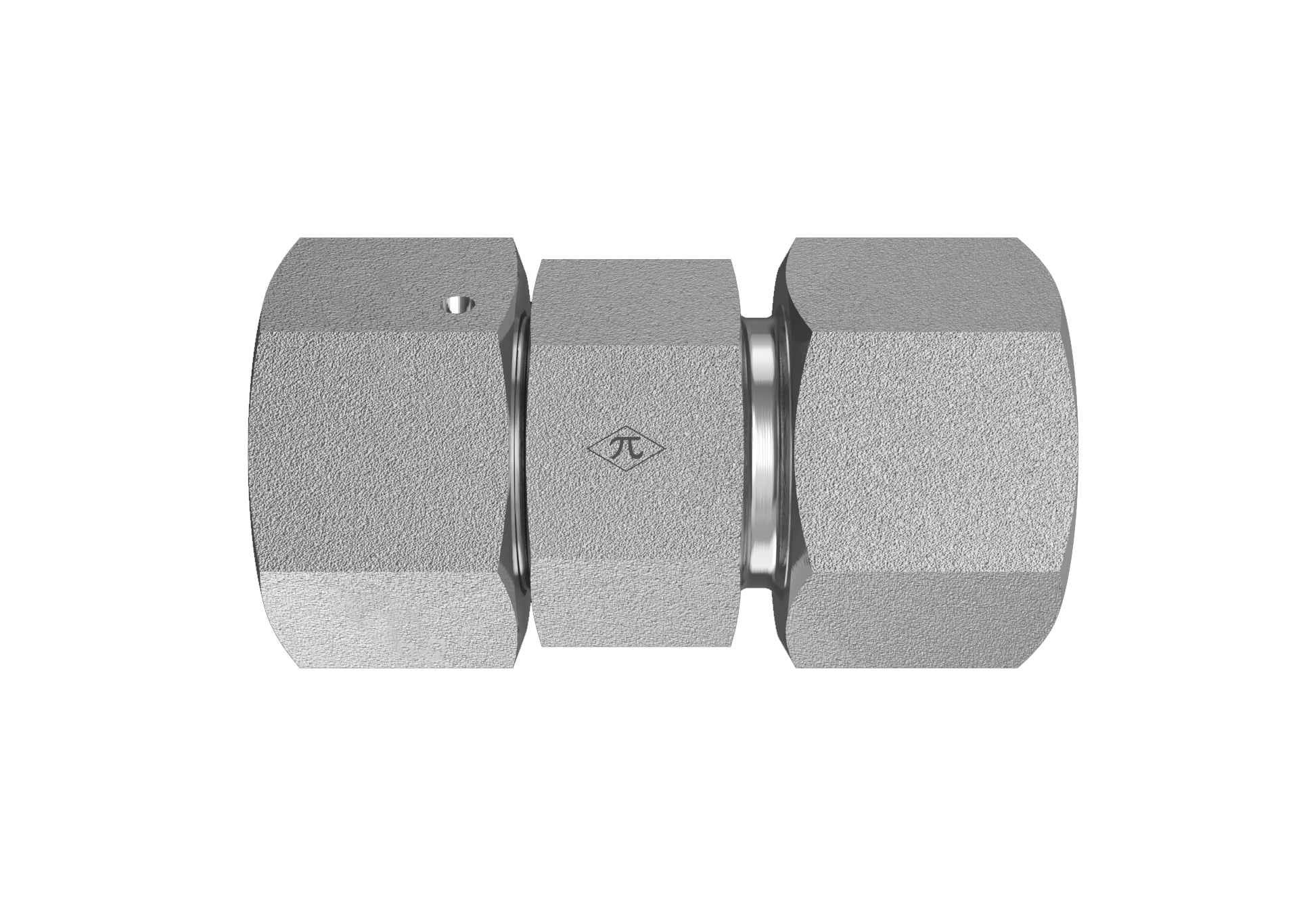

12mm Female Metric Swivel x 12mm DIN Tube

D6504-S12-S12-SS is a 12mm Female Metric Swivel x 12mm DIN Tube in the D6504-EQUAL Series. For connecting metric tube or line to a male DIN 2353 connection to extend the length of the line.

  • Stainless Steel
  • Swivel Extender
  • None
$183.90
(0) Write a Review
SKU:
D6504-S12-S12-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection B
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.48 lb
ShapeSwivel Extender
PlatingNone
Cross References
ParkerDA12S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
