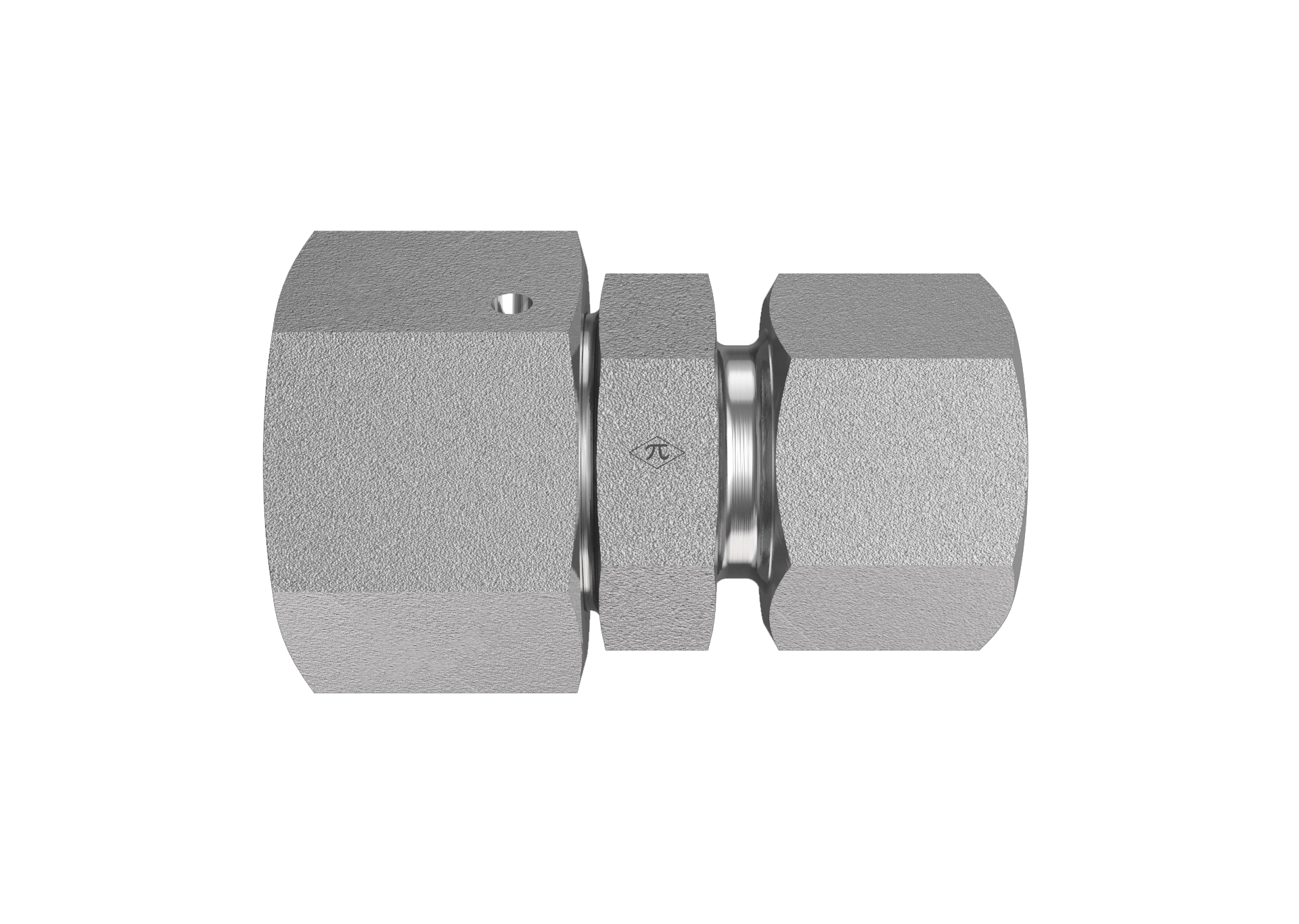

D6504-S16-S10

16mm Female Metric Swivel x 10mm DIN Tube

D6504-S16-S10 is a 16mm Female Metric Swivel x 10mm DIN Tube in the D6504-REDUCER Series. For connecting metric tube or line to a male DIN 2353 connection, reducing the tube size within the line.

  • Steel
  • Zinc Nickel
  • Swivel Reducer
$23.59
(0) Write a Review
SKU:
D6504-S16-S10

Product Details

Connection A
TypeFemale Metric Swivel
Size16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeDIN Tube
Tube OD10mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.58 lb
ShapeSwivel Reducer
Cross References
ParkerRED16/10SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
