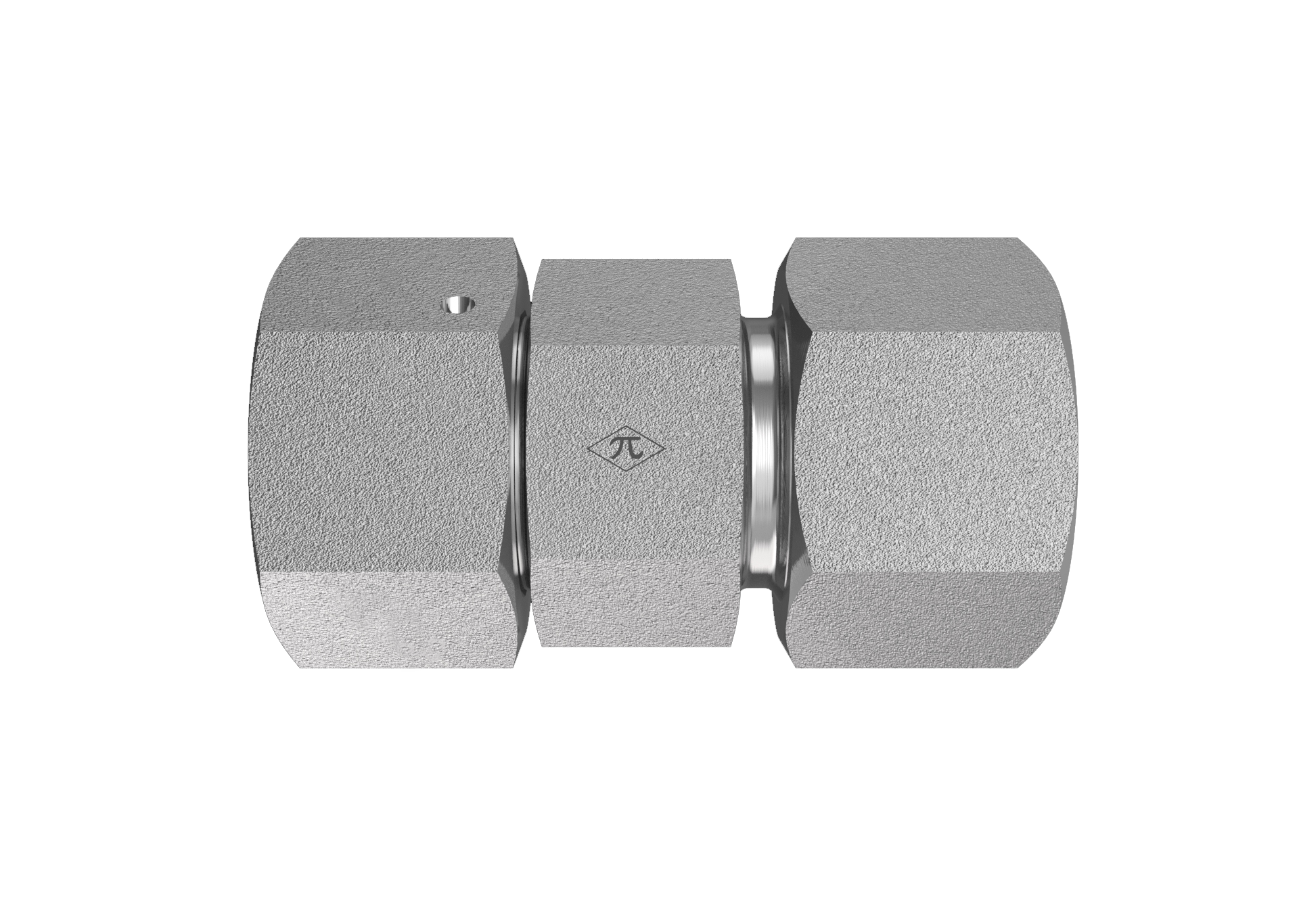

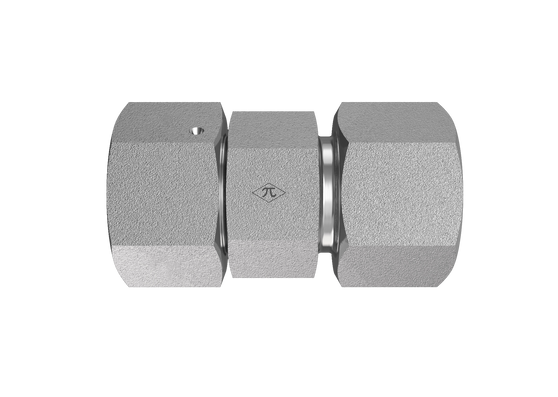

D6504-S16-S16-SS

16mm Female Metric Swivel x 16mm DIN Tube

D6504-S16-S16-SS is a 16mm Female Metric Swivel x 16mm DIN Tube in the D6504-EQUAL Series. For connecting metric tube or line to a male DIN 2353 connection to extend the length of the line.

  • Stainless Steel
  • Swivel Extender
  • None
$282.24
(0) Write a Review
SKU:
D6504-S16-S16-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.79 lb
ShapeSwivel Extender
PlatingNone
Cross References
ParkerDA16S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
