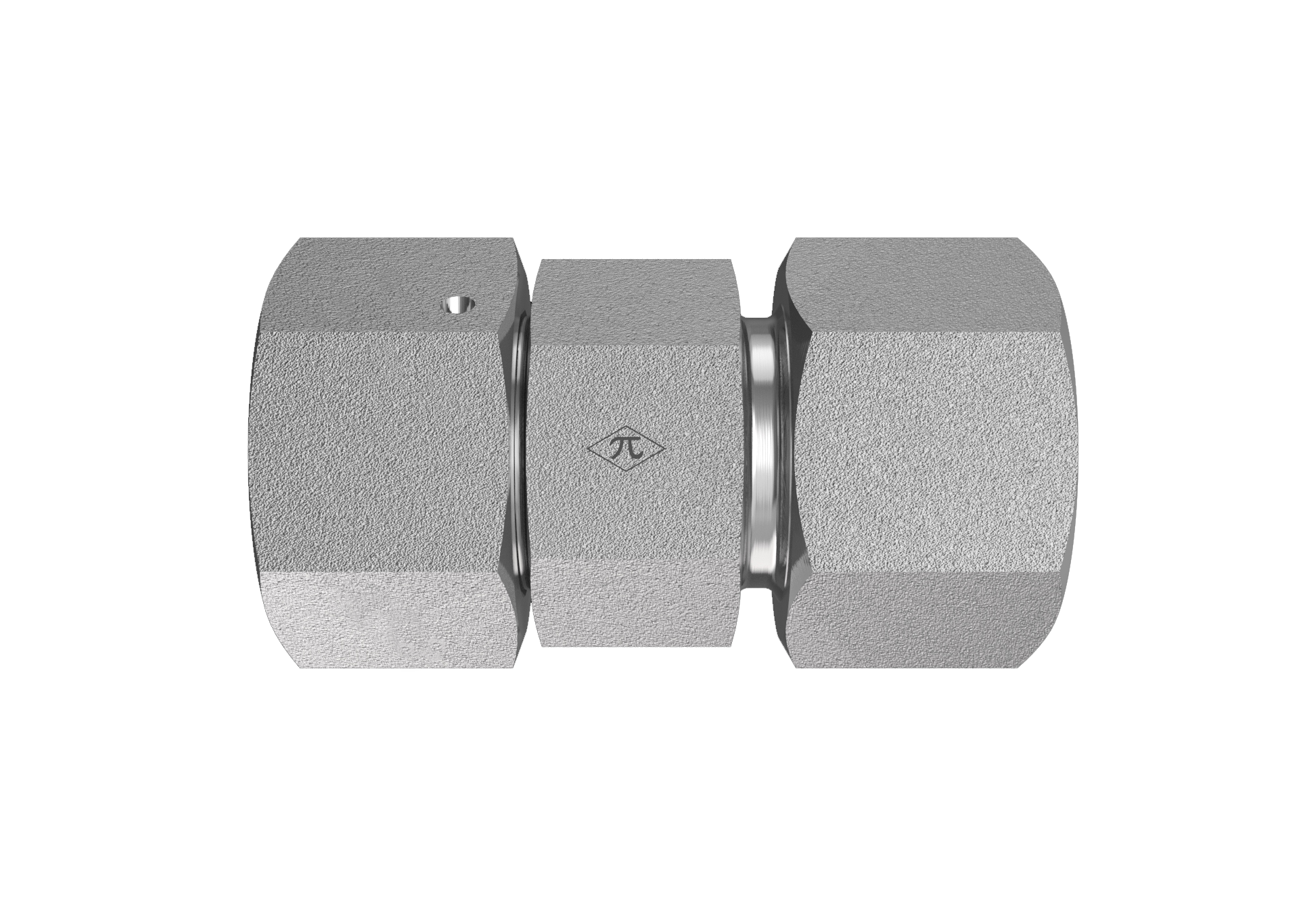

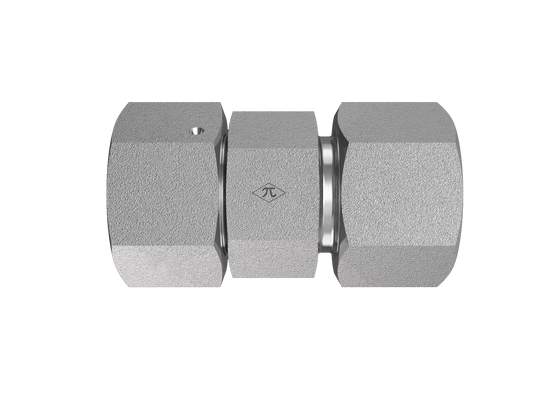

D6504-S20-S20-SS

20mm Female Metric Swivel x 20mm DIN Tube

D6504-S20-S20-SS is a 20mm Female Metric Swivel x 20mm DIN Tube in the D6504-EQUAL Series. For connecting metric tube or line to a male DIN 2353 connection to extend the length of the line.

  • Stainless Steel
  • Swivel Extender
  • None
$428.46
(0) Write a Review
SKU:
D6504-S20-S20-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1.25 lb
ShapeSwivel Extender
PlatingNone
Cross References
ParkerDA20S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
