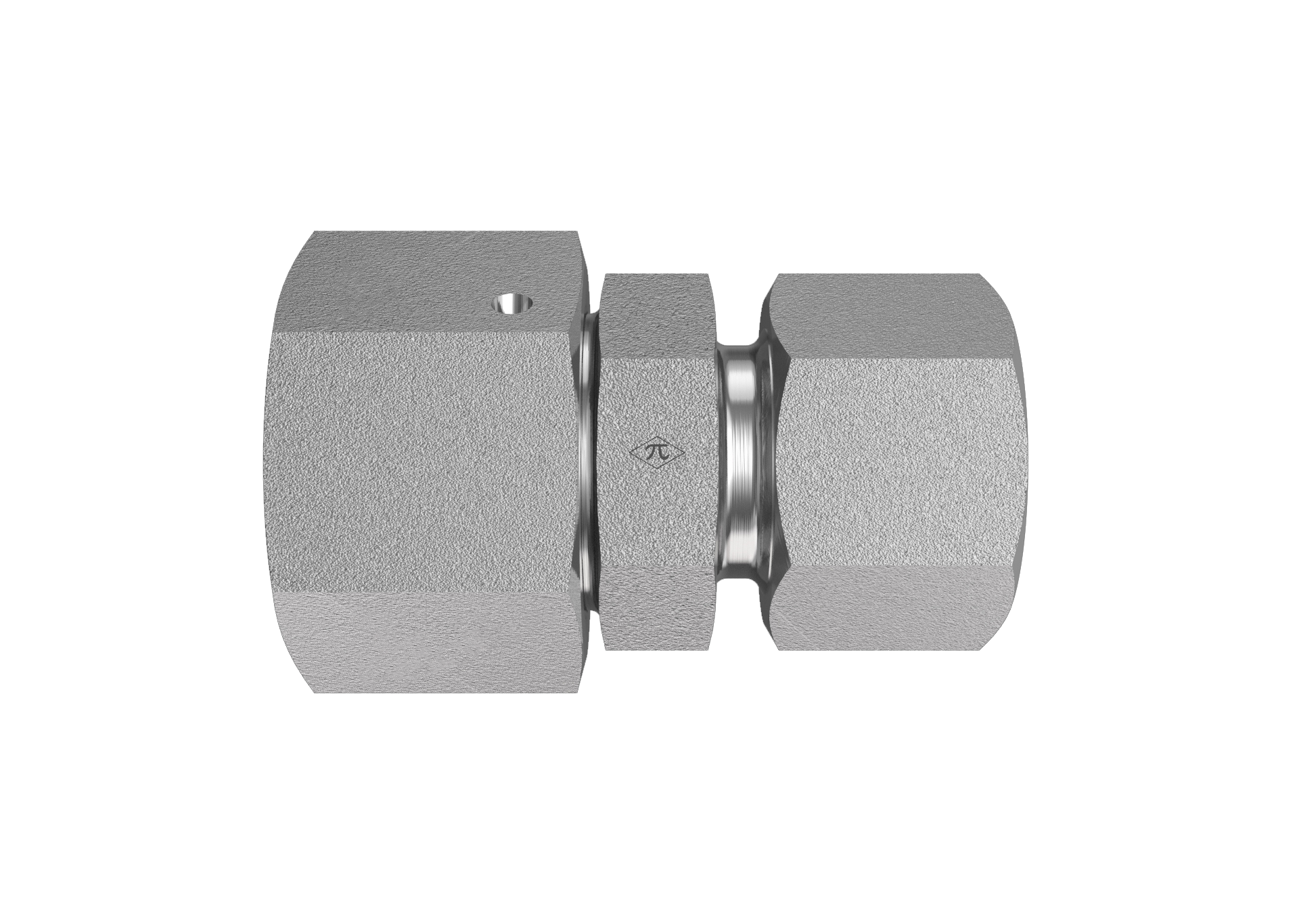

D6504-S25-S12-SS

25mm Female Metric Swivel x 12mm DIN Tube

D6504-S25-S12-SS is a 25mm Female Metric Swivel x 12mm DIN Tube in the D6504-REDUCER Series. For connecting metric tube or line to a male DIN 2353 connection, reducing the tube size within the line.

  • Stainless Steel
  • Swivel Reducer
  • None
$270.12
(0) Write a Review
SKU:
D6504-S25-S12-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1.42 lb
ShapeSwivel Reducer
PlatingNone
Cross References
ParkerRED25/12S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
