D6504-S25-S25-SS

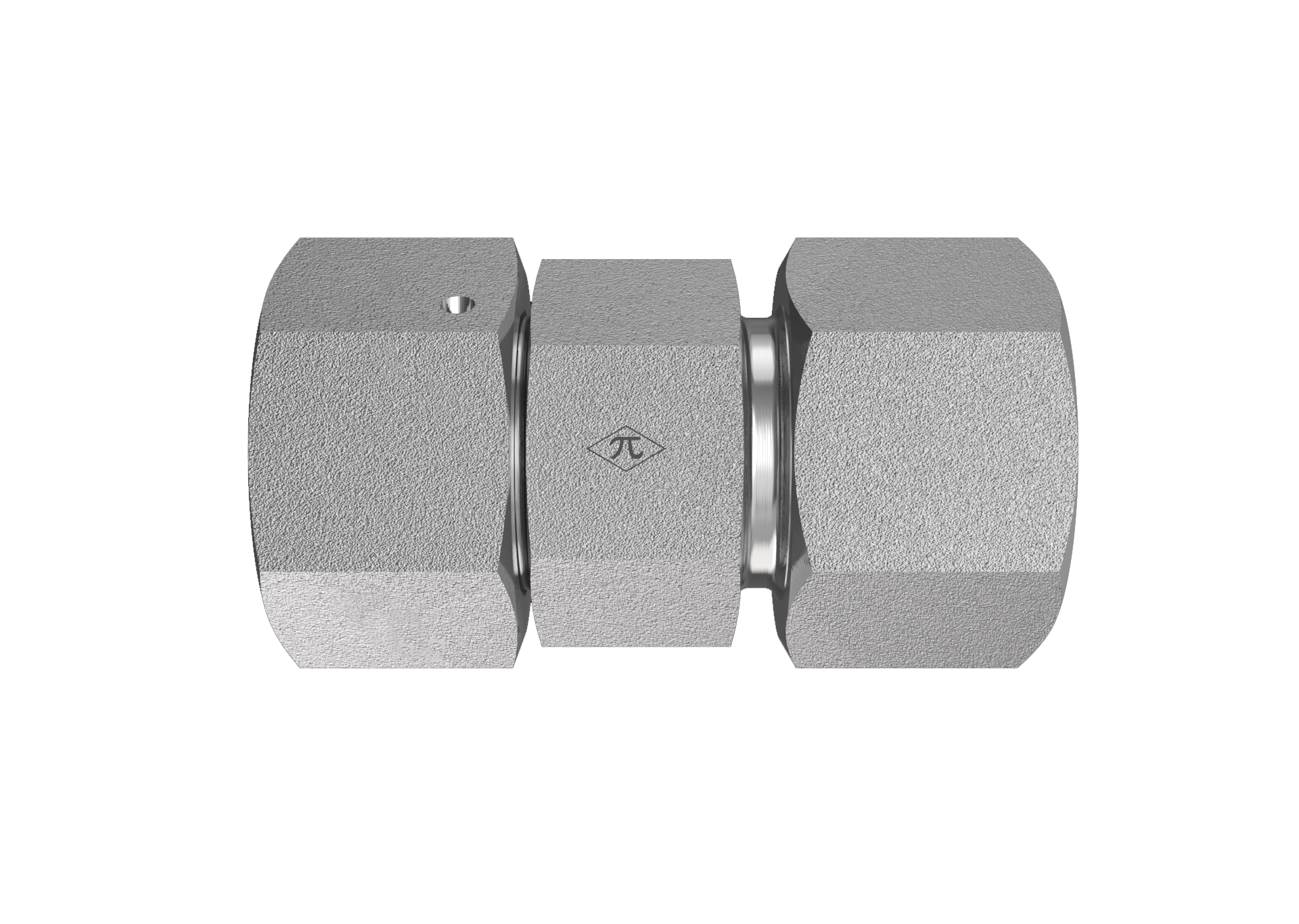

25mm Female Metric Swivel x 25mm DIN Tube

D6504-S25-S25-SS is a 25mm Female Metric Swivel x 25mm DIN Tube in the D6504-EQUAL Series. For connecting metric tube or line to a male DIN 2353 connection to extend the length of the line.

  • Stainless Steel
  • Swivel Extender
  • None
$608.57
(0) Write a Review
SKU:
D6504-S25-S25-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeDIN Tube
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight2.19 lb
ShapeSwivel Extender
PlatingNone
Cross References
ParkerDA25S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
