D6505-S16-08

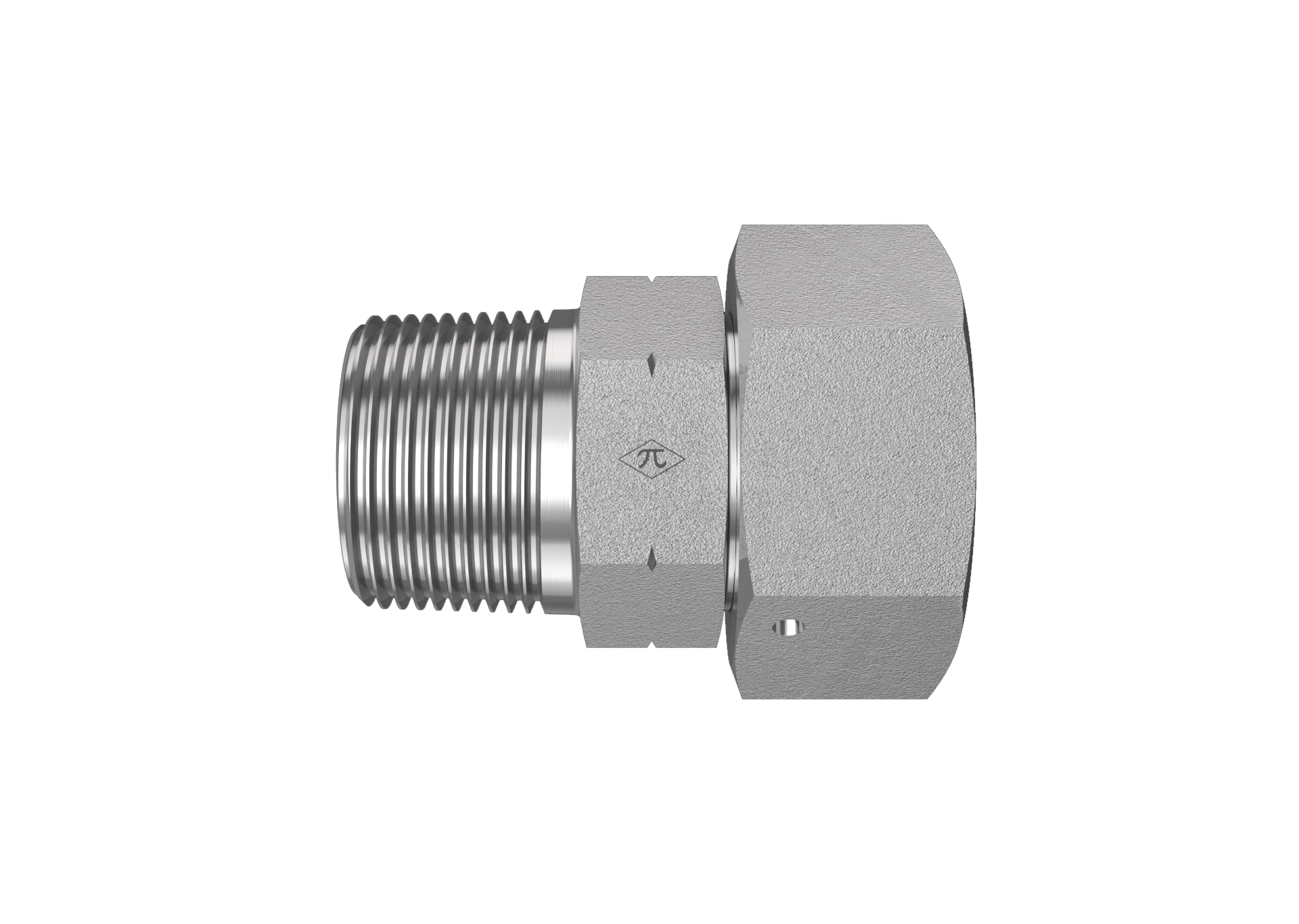

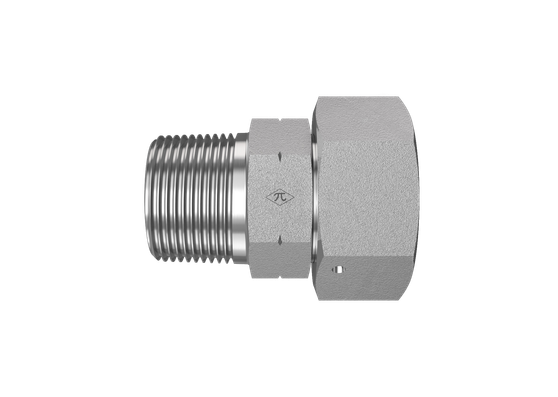

16mm Female Metric Swivel x 1/2" Male NPT

D6505-S16-08 is a 16mm Female Metric Swivel x 1/2" Male NPT in the D6505 Series. For connecting a male DIN 2353 connector to a female NPT connection.

  • Steel
  • Zinc Nickel
  • Swivel Connector
$94.56
(0) Write a Review
SKU:
D6505-S16-08

Product Details

Connection A
TypeFemale Metric Swivel
Size16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeMale NPT
Pipe Size1/2"
StandardANSI/ASME B1.20.1
Thread TypeM24X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.35 lb
ShapeSwivel Connector
Cross References
ParkerEGE16S1/2NPTCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
