D6505-S20-12-SS

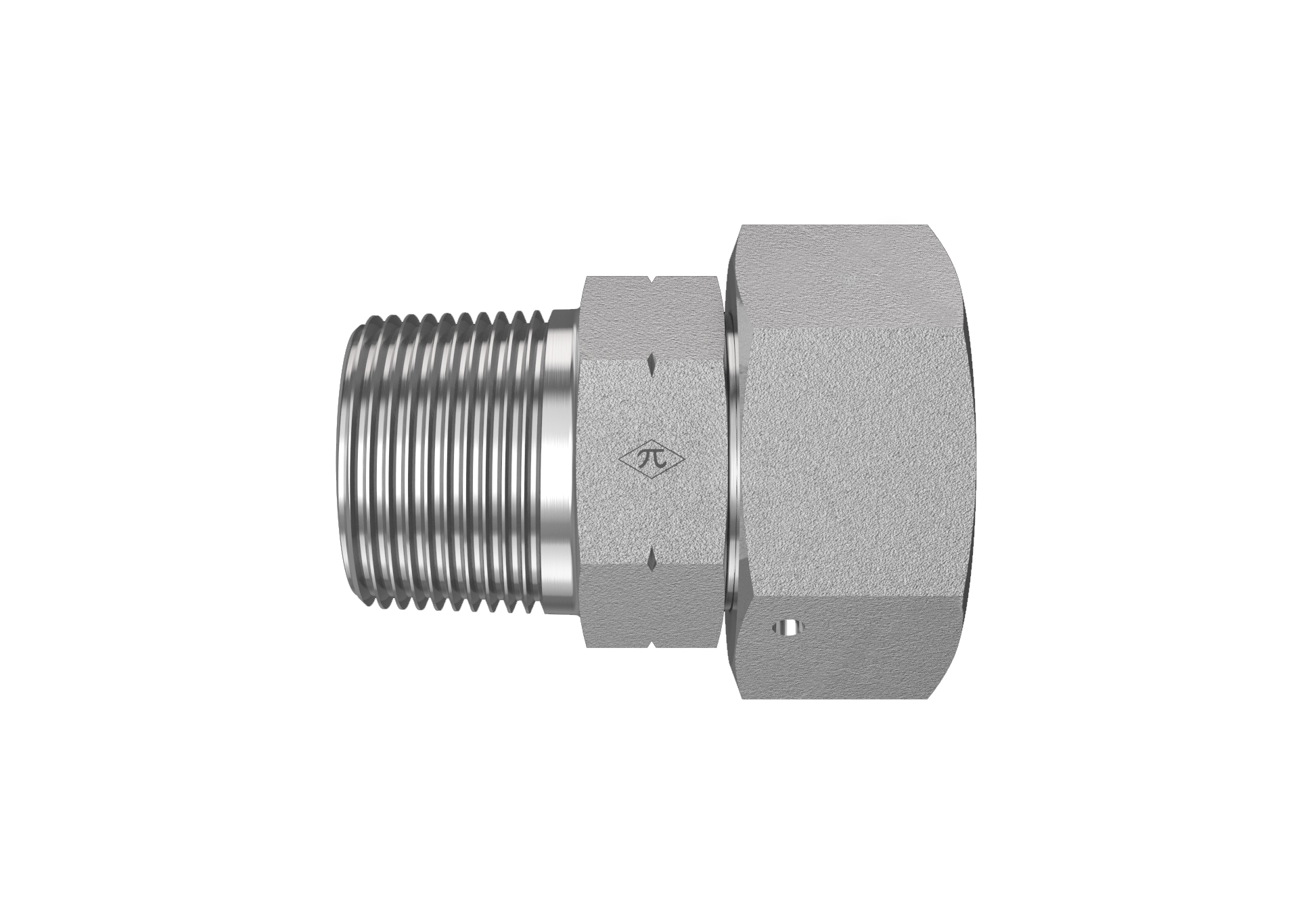

20mm Female Metric Swivel x 3/4" Male NPT

D6505-S20-12-SS is a 20mm Female Metric Swivel x 3/4" Male NPT in the D6505 Series. For connecting a male DIN 2353 connector to a female NPT connection.

  • Stainless Steel
  • Swivel Connector
  • None
$356.87
(0) Write a Review
SKU:
D6505-S20-12-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeMale NPT
Pipe Size3/4"
StandardANSI/ASME B1.20.1
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.88 lb
ShapeSwivel Connector
PlatingNone
Cross References
ParkerEGE20S3/4NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
