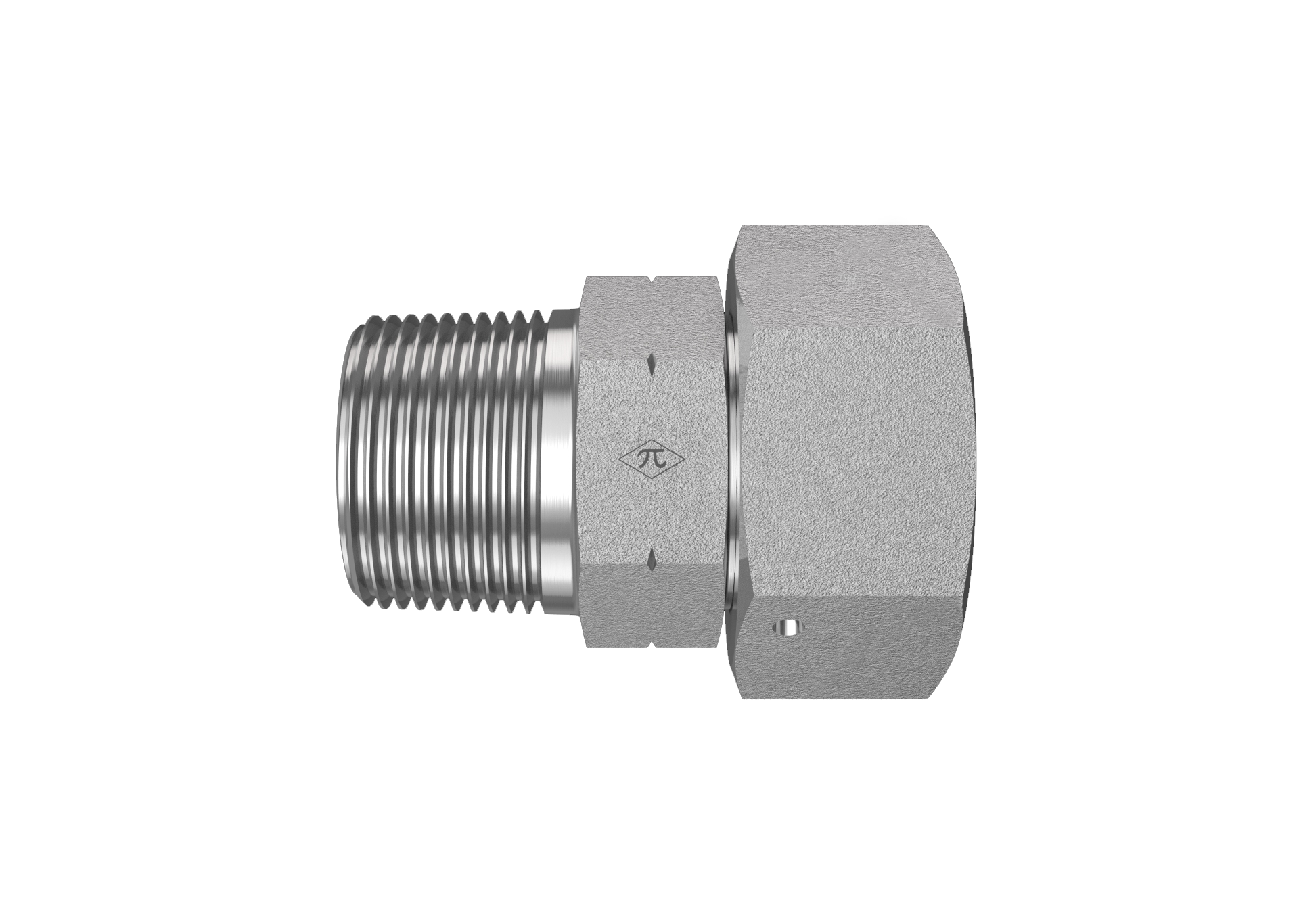

D6505-S38-24-SS

38mm Female Metric Swivel x 1-1/2" Male NPT

D6505-S38-24-SS is a 38mm Female Metric Swivel x 1-1/2" Male NPT in the D6505 Series. For connecting a male DIN 2353 connector to a female NPT connection.

  • Stainless Steel
  • Swivel Connector
  • None
$795.75
(0) Write a Review
SKU:
D6505-S38-24-SS

Product Details

Connection A
TypeFemale Metric Swivel
Size38mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeMale NPT
Pipe Size1-1/2"
StandardANSI/ASME B1.20.1
Thread TypeM52X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1.98 lb
ShapeSwivel Connector
PlatingNone
Cross References
ParkerEGE38S11/2NPT71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
