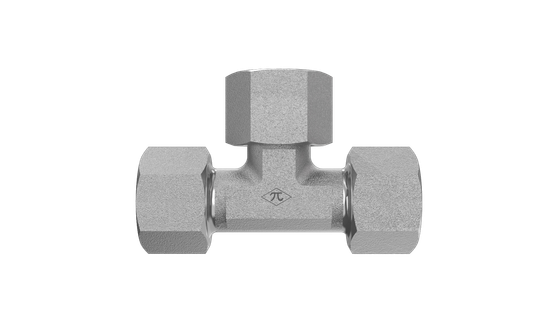

D6600 product image

D6600-L15-L15-L15

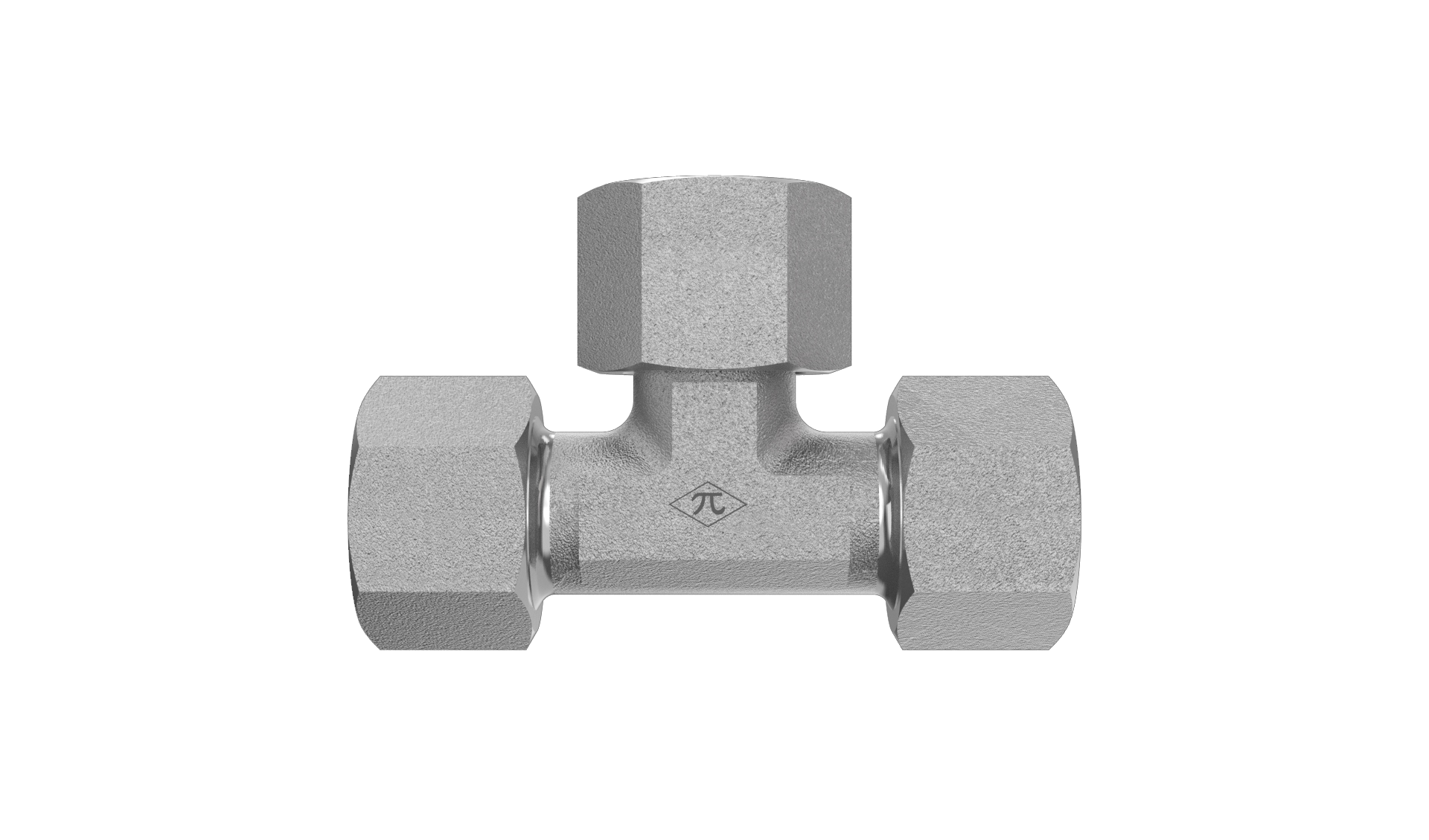

15mm DIN Tube x 15mm DIN Tube x 15mm Female Metric Swivel

D6600-L15-L15-L15 is a 15mm DIN Tube x 15mm DIN Tube x 15mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$50.65
(0) Write a Review
SKU:
D6600-L15-L15-L15

Product Details

Connection A
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection B
TypeDIN Tube
Tube OD15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection C
TypeFemale Metric Swivel
Size15mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.55 lb
ShapeSwivel Branch Tee
Cross References
ParkerET15LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
