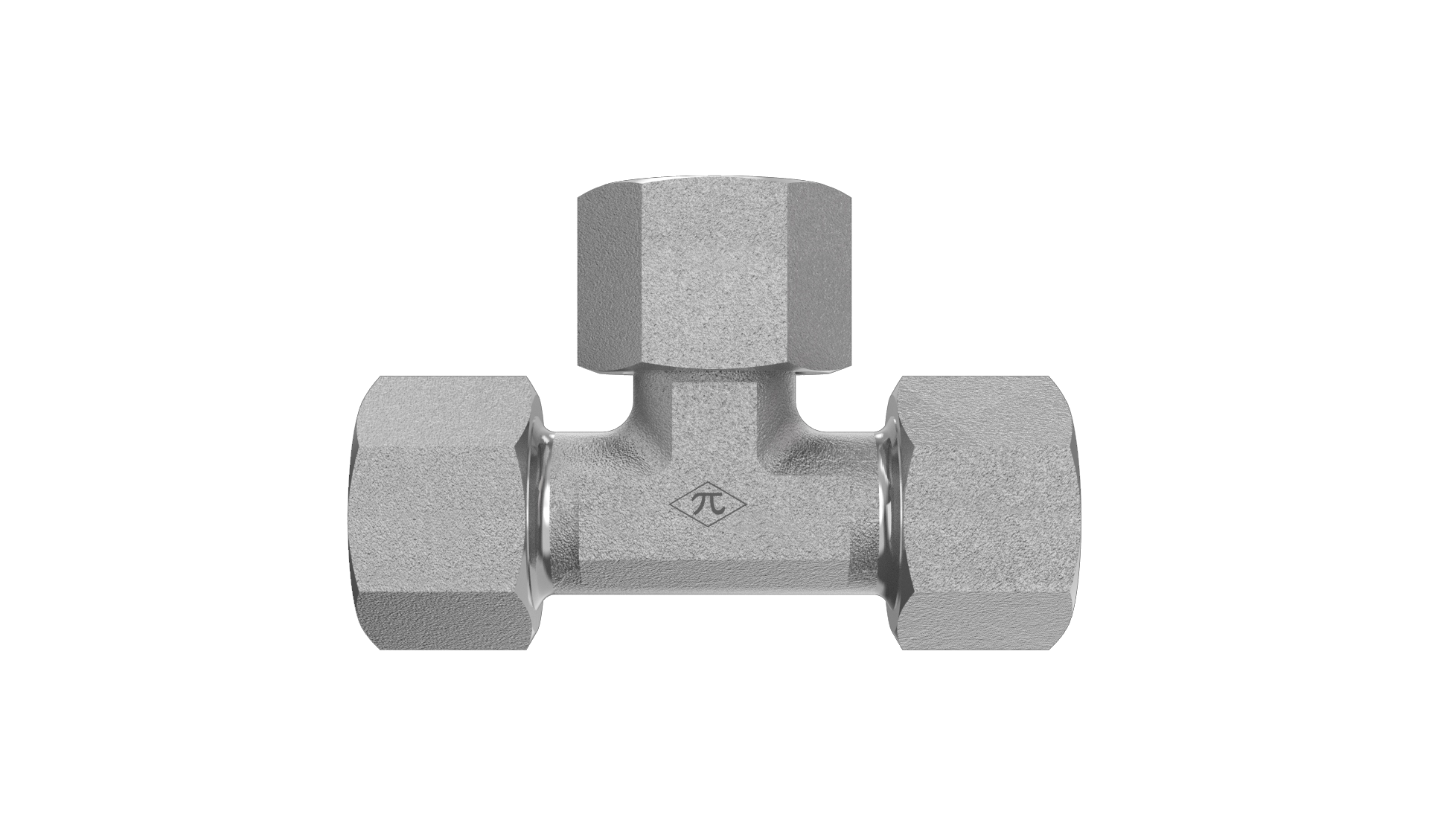

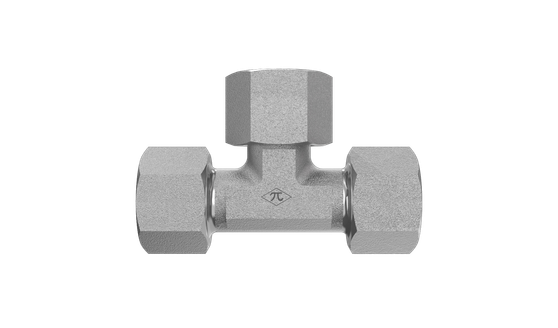

D6600-L18-L18-L18-SS-X

18mm Male DIN x 18mm Male DIN x 18mm Female Metric Swivel

D6600-L18-L18-L18-SS-X is a 18mm Male DIN x 18mm Male DIN x 18mm Female Metric Swivel in the D6600-X Series. For branching two metric tubes or lines, already containing nuts and cutting rings, to a male DIN 2353 connector on the branch of.

  • Stainless Steel
  • Swivel Branch Tee
  • None
$323.25
(0) Write a Review
SKU:
D6600-L18-L18-L18-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection B
TypeMale DIN
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection C
TypeFemale Metric Swivel
Size18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.35 lb
ShapeSwivel Branch Tee
PlatingNone
Cross References
ParkerET18LOMD71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
