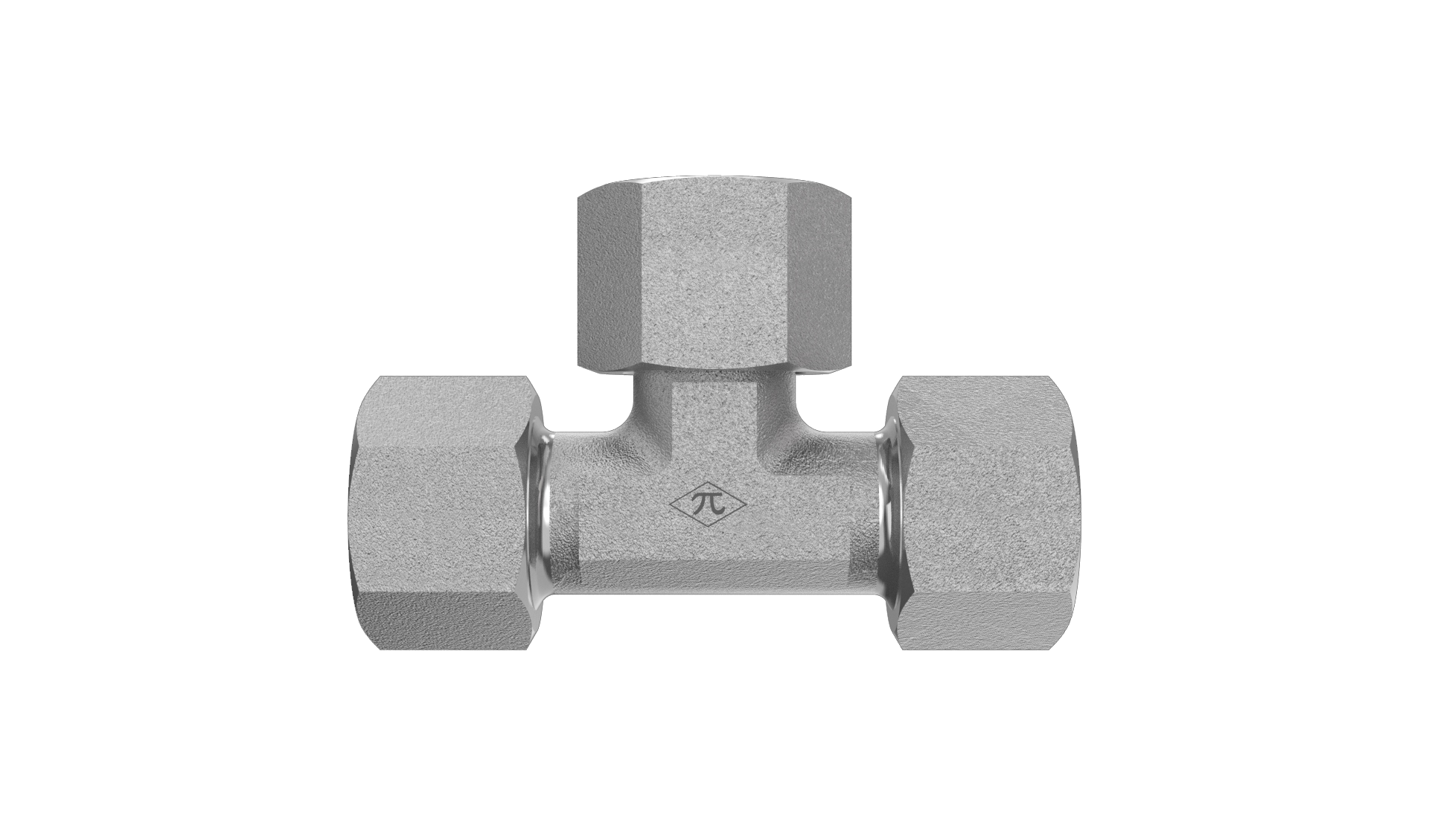

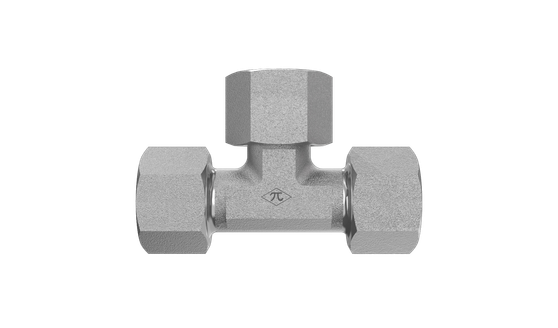

D6600-L18-L18-L18-SS

18mm DIN Tube x 18mm DIN Tube x 18mm Female Metric Swivel

D6600-L18-L18-L18-SS is a 18mm DIN Tube x 18mm DIN Tube x 18mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Stainless Steel
  • Swivel Branch Tee
  • None
$395.59
(0) Write a Review
SKU:
D6600-L18-L18-L18-SS

Product Details

Connection A
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection B
TypeDIN Tube
Tube OD18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection C
TypeFemale Metric Swivel
Size18mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM26X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.80 lb
ShapeSwivel Branch Tee
PlatingNone
Cross References
ParkerET18L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
