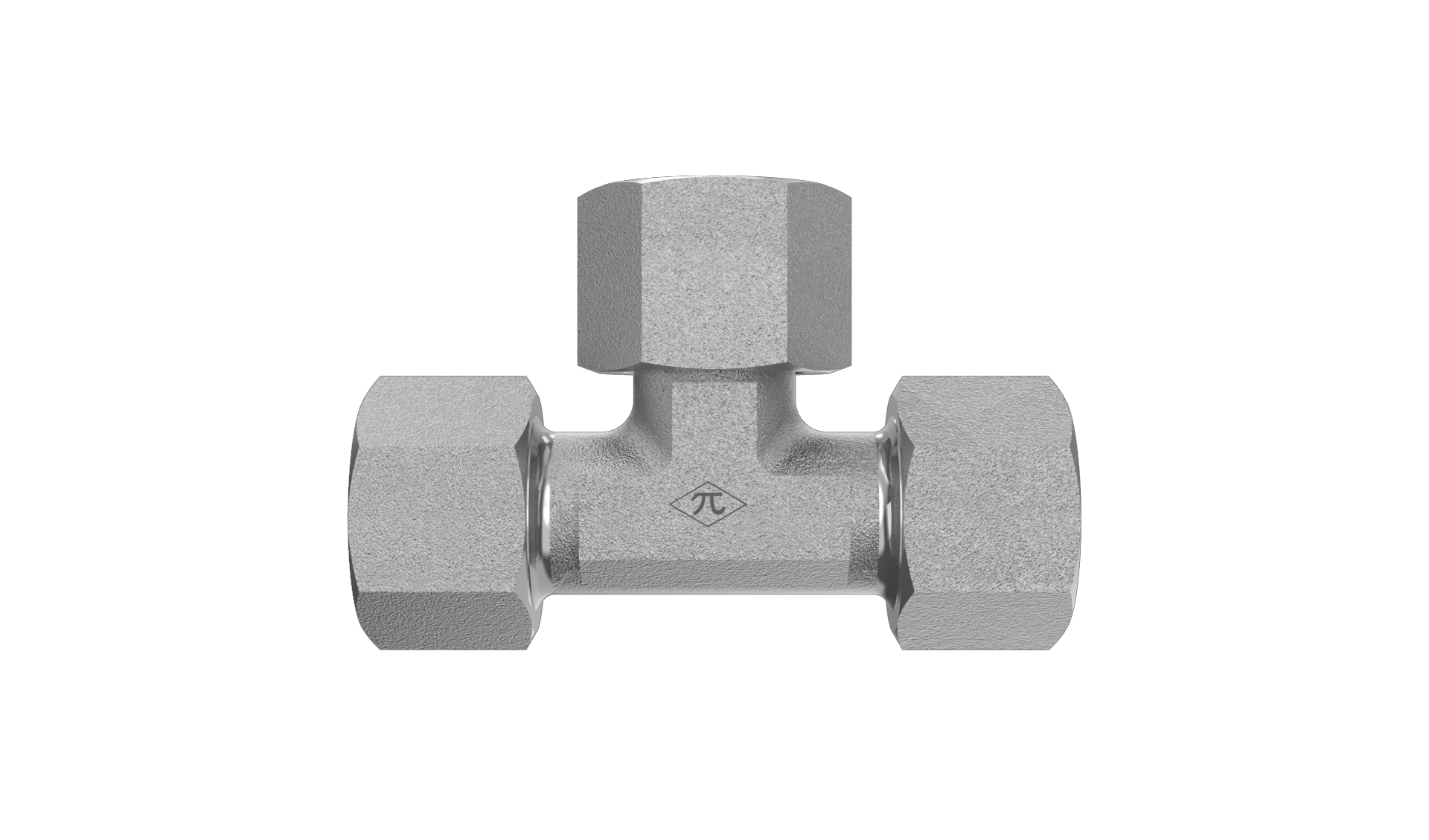

D6600 product image

D6600-L22-L22-L22

22mm DIN Tube x 22mm DIN Tube x 22mm Female Metric Swivel

D6600-L22-L22-L22 is a 22mm DIN Tube x 22mm DIN Tube x 22mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$102.24
(0) Write a Review
SKU:
D6600-L22-L22-L22

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
TypeFemale Metric Swivel
Size22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight1.05 lb
ShapeSwivel Branch Tee
Cross References
ParkerET22LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
