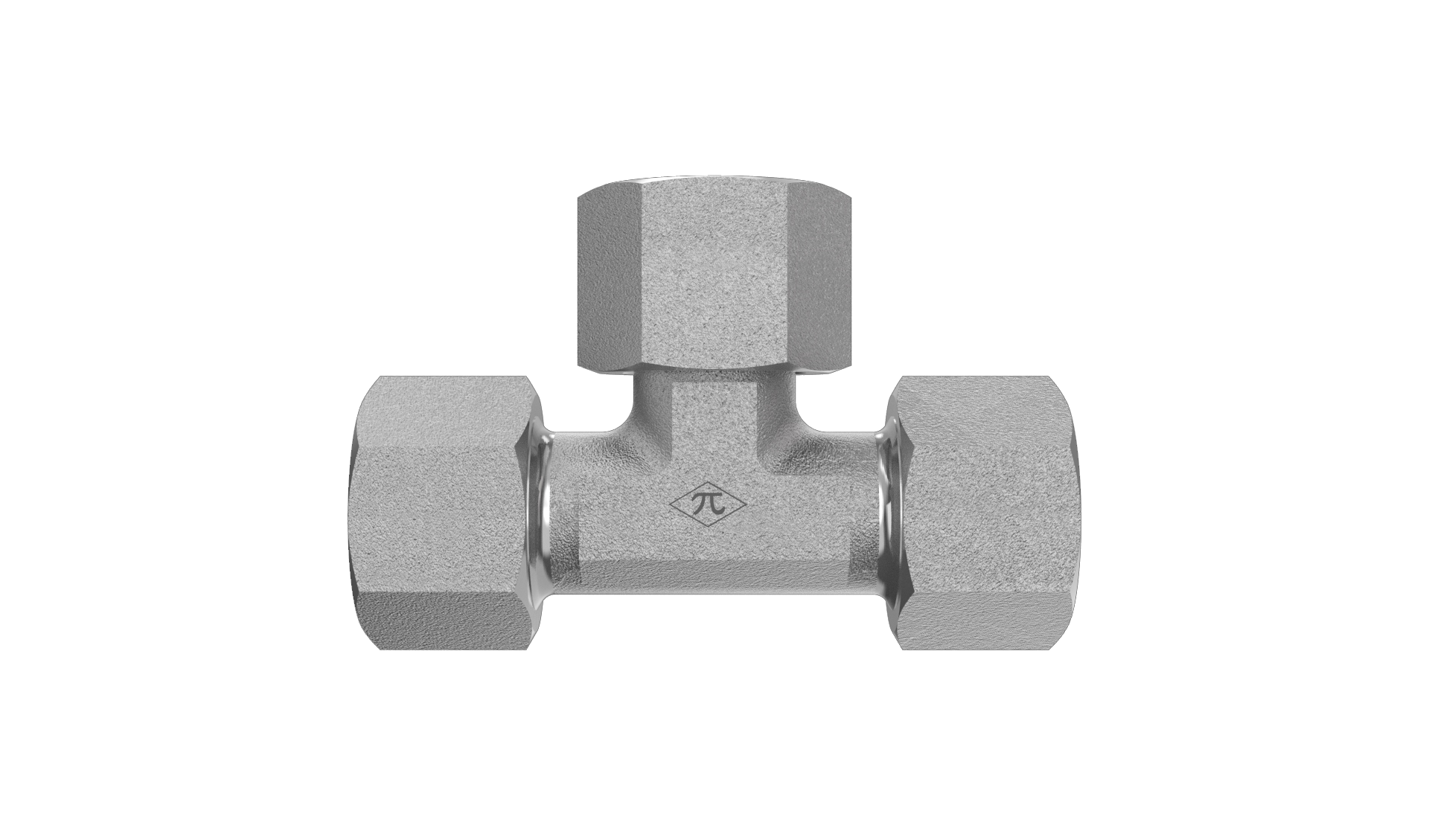

D6600-L35-L35-L35-SS

35mm DIN Tube x 35mm DIN Tube x 35mm Female Metric Swivel

D6600-L35-L35-L35-SS is a 35mm DIN Tube x 35mm DIN Tube x 35mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Stainless Steel
  • Swivel Branch Tee
  • None
$1,196.87
(0) Write a Review
SKU:
D6600-L35-L35-L35-SS

Product Details

Connection A
TypeDIN Tube
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection B
TypeDIN Tube
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection C
TypeFemale Metric Swivel
Size35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection D
Specifications
MaterialStainless Steel
Weight2.23 lb
ShapeSwivel Branch Tee
PlatingNone
Cross References
ParkerET35L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
