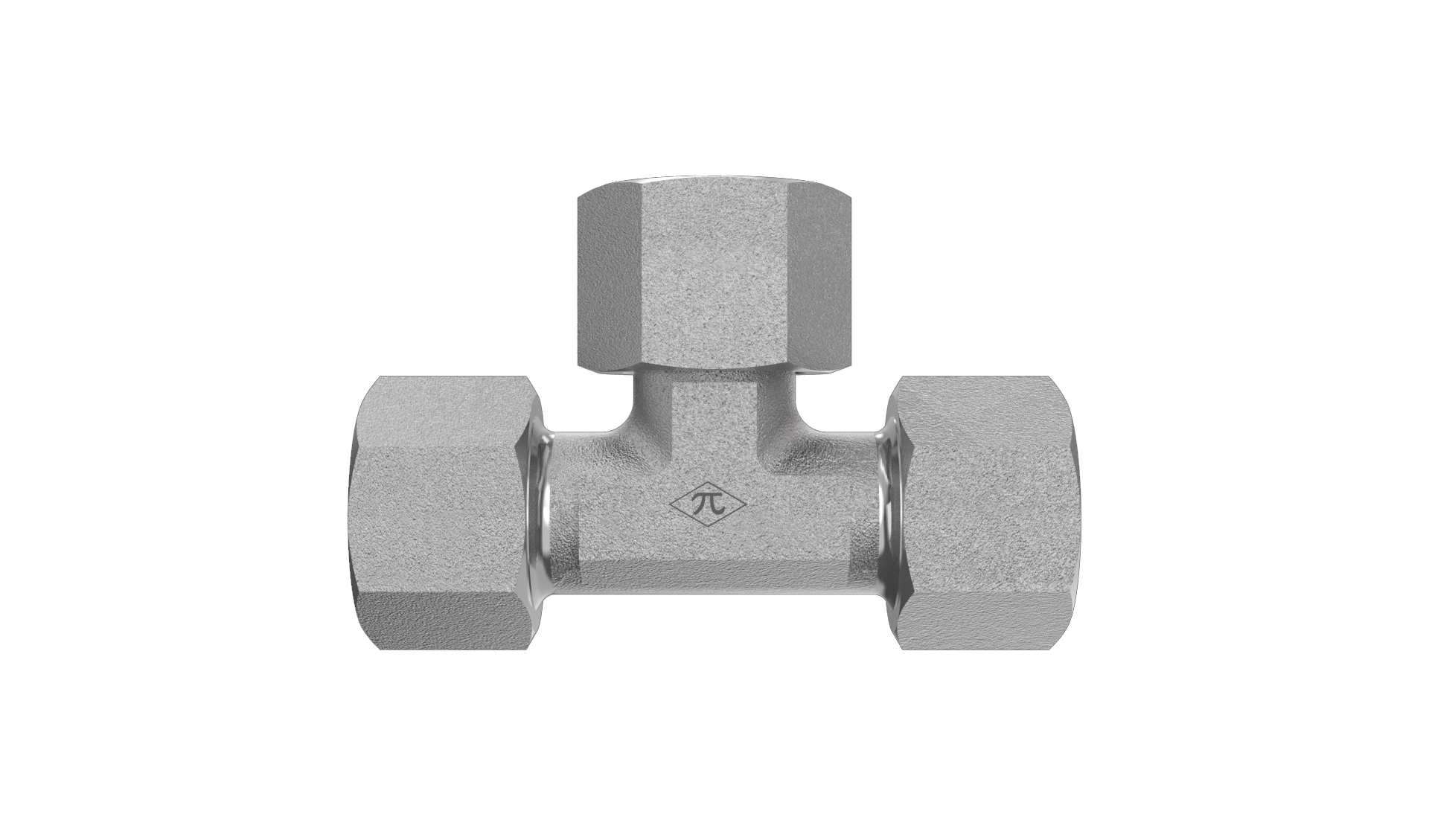

D6600 product image

D6600-L35-L35-L35

35mm DIN Tube x 35mm DIN Tube x 35mm Female Metric Swivel

D6600-L35-L35-L35 is a 35mm DIN Tube x 35mm DIN Tube x 35mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$211.76
(0) Write a Review
SKU:
D6600-L35-L35-L35

Product Details

Connection A
TypeDIN Tube
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection B
TypeDIN Tube
Tube OD35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection C
TypeFemale Metric Swivel
Size35mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM45X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight2.18 lb
ShapeSwivel Branch Tee
Cross References
ParkerET35LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
