D6600-L42-L42-L42

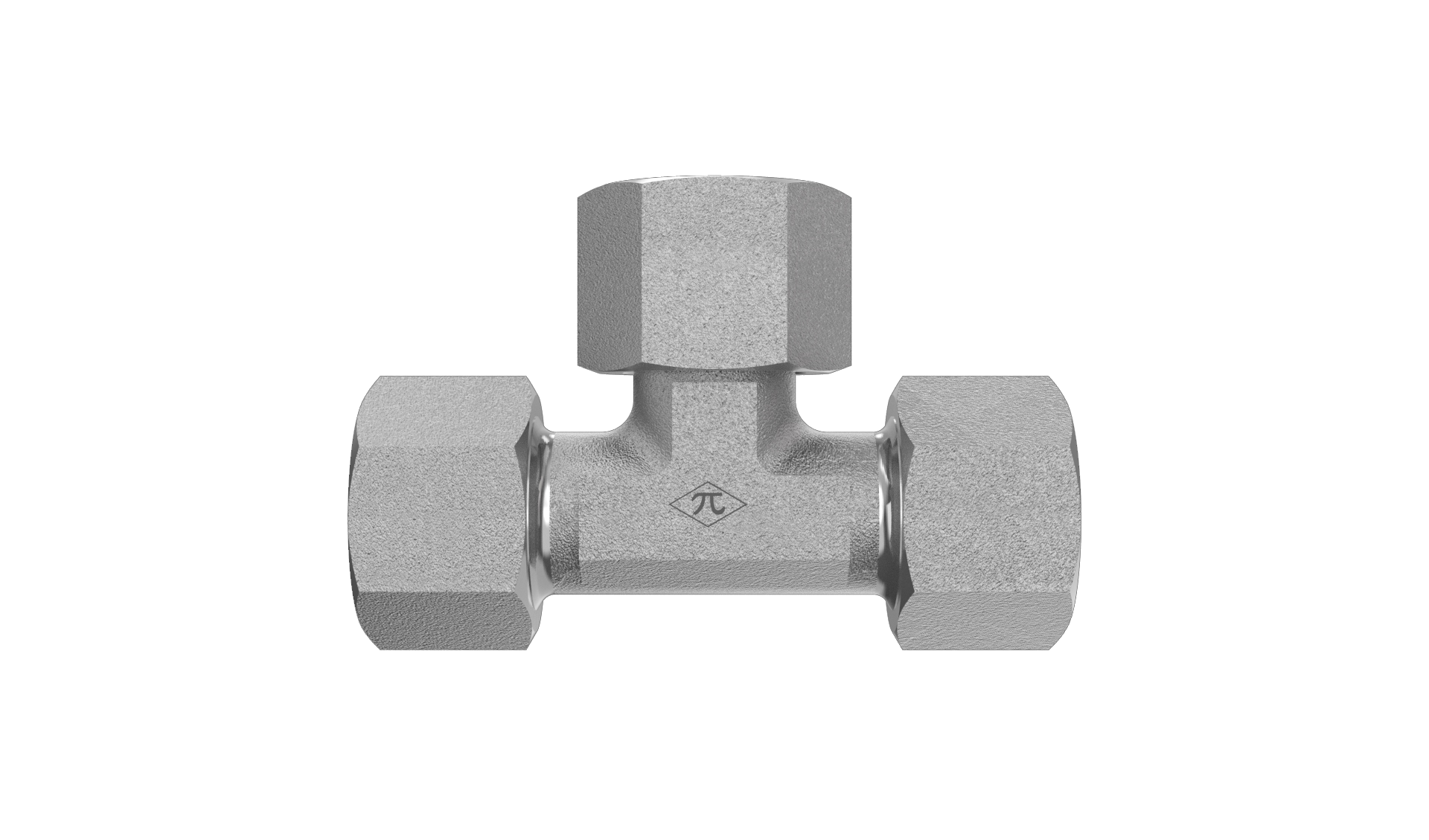

42mm DIN Tube x 42mm DIN Tube x 42mm Female Metric Swivel

D6600-L42-L42-L42 is a 42mm DIN Tube x 42mm DIN Tube x 42mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$321.54
(0) Write a Review
SKU:
D6600-L42-L42-L42

Product Details

Connection A
TypeDIN Tube
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeDIN Tube
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection C
TypeFemale Metric Swivel
Size42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight3.25 lb
ShapeSwivel Branch Tee
Cross References
ParkerET42LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
