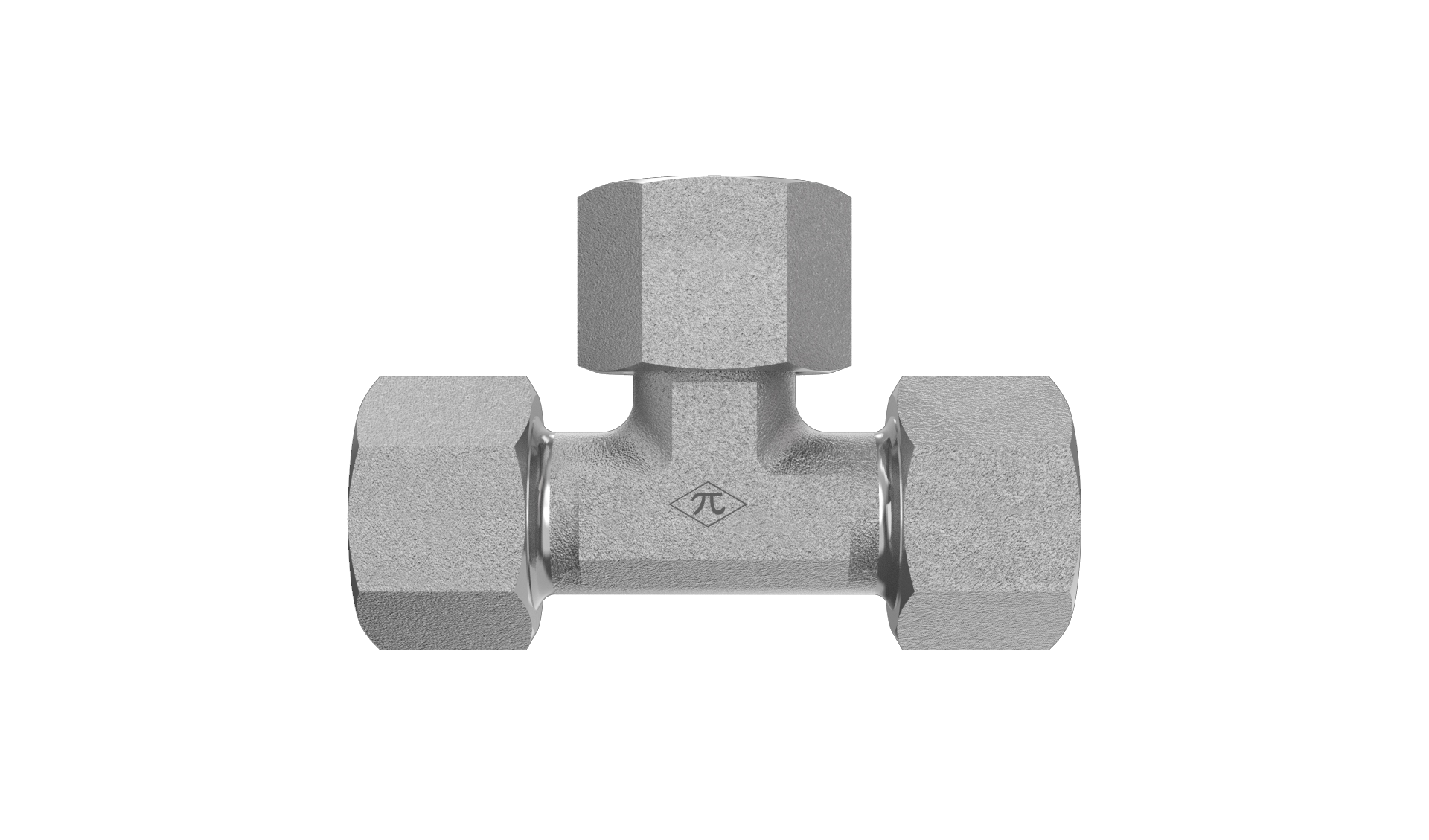

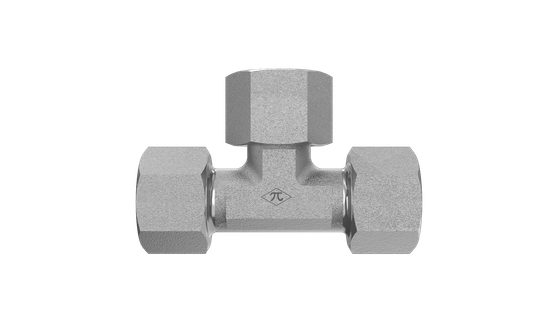

D6600-S08-S08-S08

8mm DIN Tube x 8mm DIN Tube x 8mm Female Metric Swivel

D6600-S08-S08-S08 is a 8mm DIN Tube x 8mm DIN Tube x 8mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$40.59
(0) Write a Review
SKU:
D6600-S08-S08-S08

Product Details

Connection A
TypeDIN Tube
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM16X1.5
Connection B
TypeDIN Tube
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM16X1.5
Connection C
TypeFemale Metric Swivel
Size8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM16X1.5
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.29 lb
ShapeSwivel Branch Tee
Cross References
ParkerET08SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
