D6600-S14-S14-S14

14mm DIN Tube x 14mm DIN Tube x 14mm Female Metric Swivel

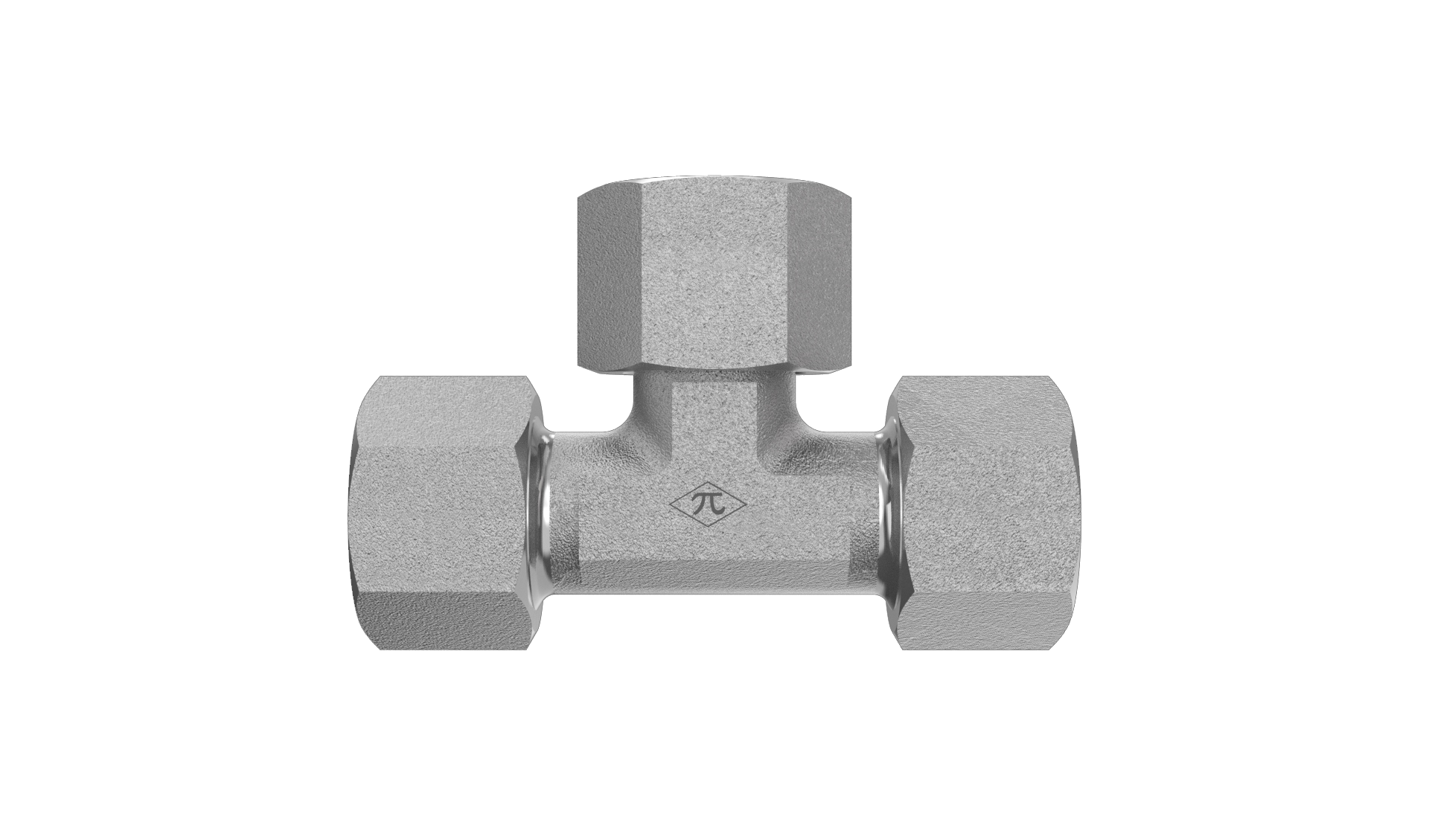

D6600-S14-S14-S14 is a 14mm DIN Tube x 14mm DIN Tube x 14mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$123.13
(0) Write a Review
SKU:
D6600-S14-S14-S14

Product Details

Connection A
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection B
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection C
TypeFemale Metric Swivel
Size14mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM22X1.5
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.66 lb
ShapeSwivel Branch Tee
Cross References
ParkerET14SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
