D6600-S16-S16-S16

16mm DIN Tube x 16mm DIN Tube x 16mm Female Metric Swivel

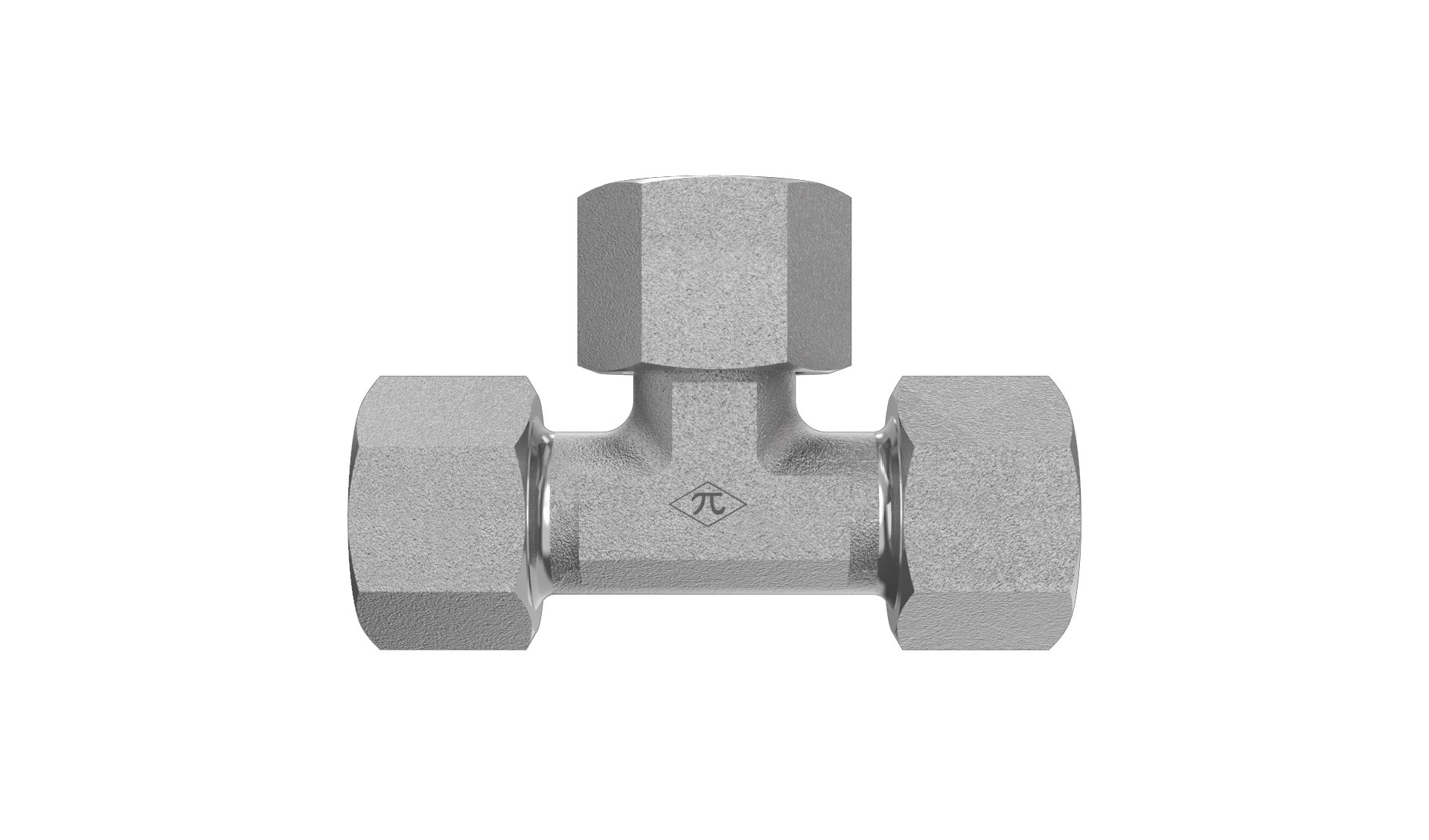

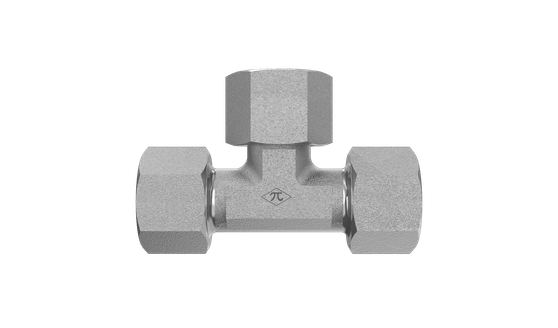

D6600-S16-S16-S16 is a 16mm DIN Tube x 16mm DIN Tube x 16mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$71.56
(0) Write a Review
SKU:
D6600-S16-S16-S16

Product Details

Connection A
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
TypeFemale Metric Swivel
Size16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.85 lb
ShapeSwivel Branch Tee
Cross References
ParkerET16SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
