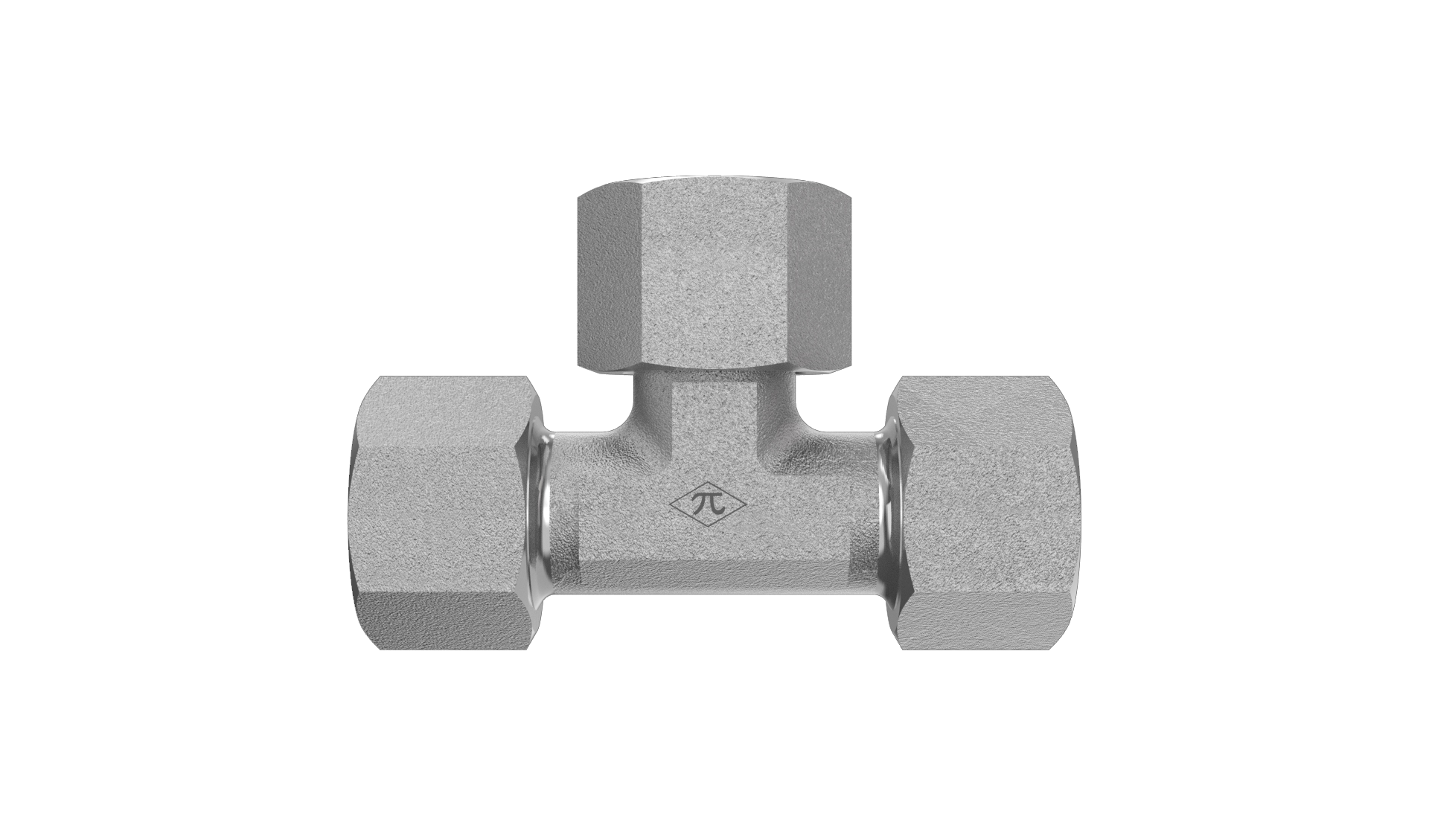

D6600-S20-S20-S20

20mm DIN Tube x 20mm DIN Tube x 20mm Female Metric Swivel

D6600-S20-S20-S20 is a 20mm DIN Tube x 20mm DIN Tube x 20mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$112.72
(0) Write a Review
SKU:
D6600-S20-S20-S20

Product Details

Connection A
TypeDIN Tube
Tube OD20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeDIN Tube
Tube OD20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
TypeFemale Metric Swivel
Size20mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight1.32 lb
ShapeSwivel Branch Tee
Cross References
ParkerET20SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
