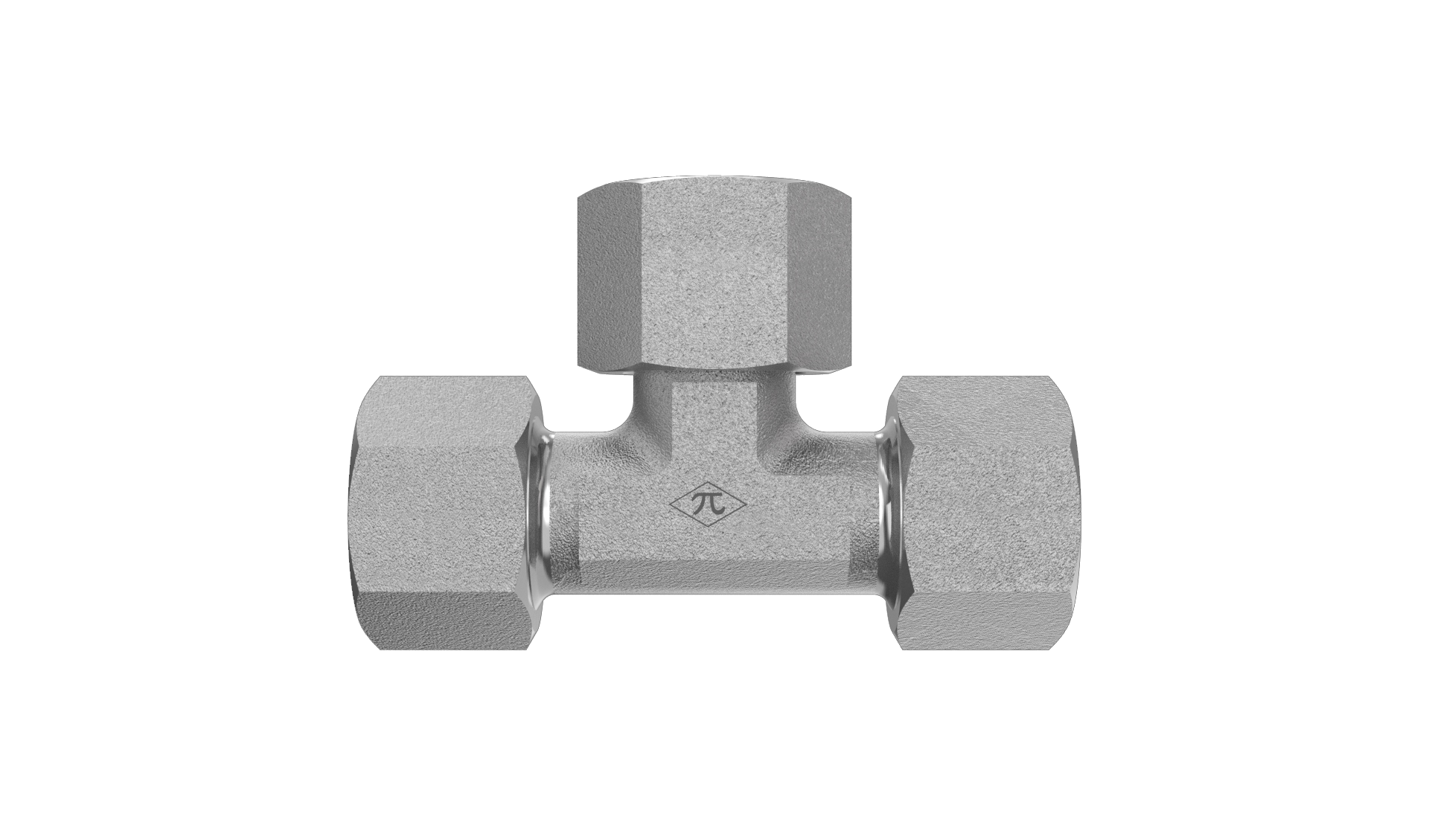

D6600-S25-S25-S25

25mm DIN Tube x 25mm DIN Tube x 25mm Female Metric Swivel

D6600-S25-S25-S25 is a 25mm DIN Tube x 25mm DIN Tube x 25mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$167.64
(0) Write a Review
SKU:
D6600-S25-S25-S25

Product Details

Connection A
TypeDIN Tube
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection B
TypeDIN Tube
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection C
TypeFemale Metric Swivel
Size25mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM36X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight2.42 lb
ShapeSwivel Branch Tee
Cross References
ParkerET25SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
