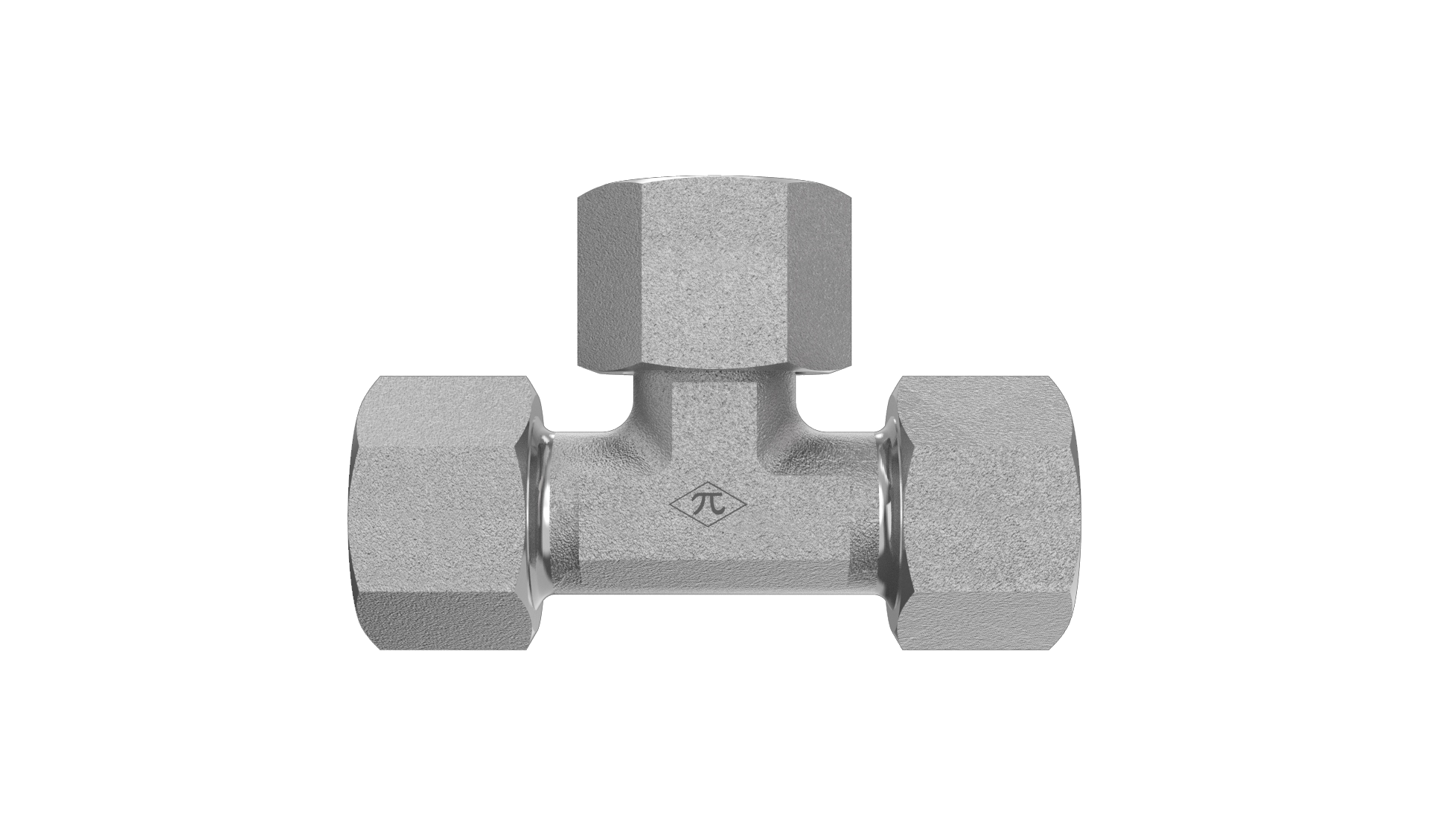

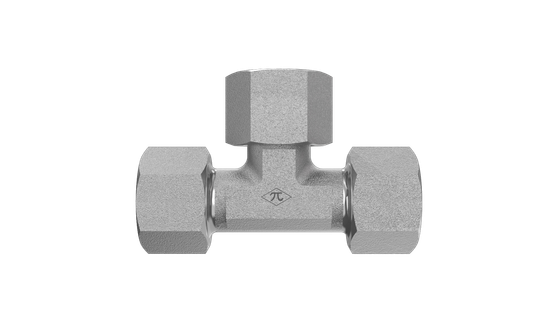

D6600-S30-S30-S30

30mm DIN Tube x 30mm DIN Tube x 30mm Female Metric Swivel

D6600-S30-S30-S30 is a 30mm DIN Tube x 30mm DIN Tube x 30mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$217.04
(0) Write a Review
SKU:
D6600-S30-S30-S30

Product Details

Connection A
TypeDIN Tube
Tube OD30mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM42X2.0
Connection B
TypeDIN Tube
Tube OD30mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM42X2.0
Connection C
TypeFemale Metric Swivel
Size30mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM42X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight3.08 lb
ShapeSwivel Branch Tee
Cross References
ParkerET30SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
