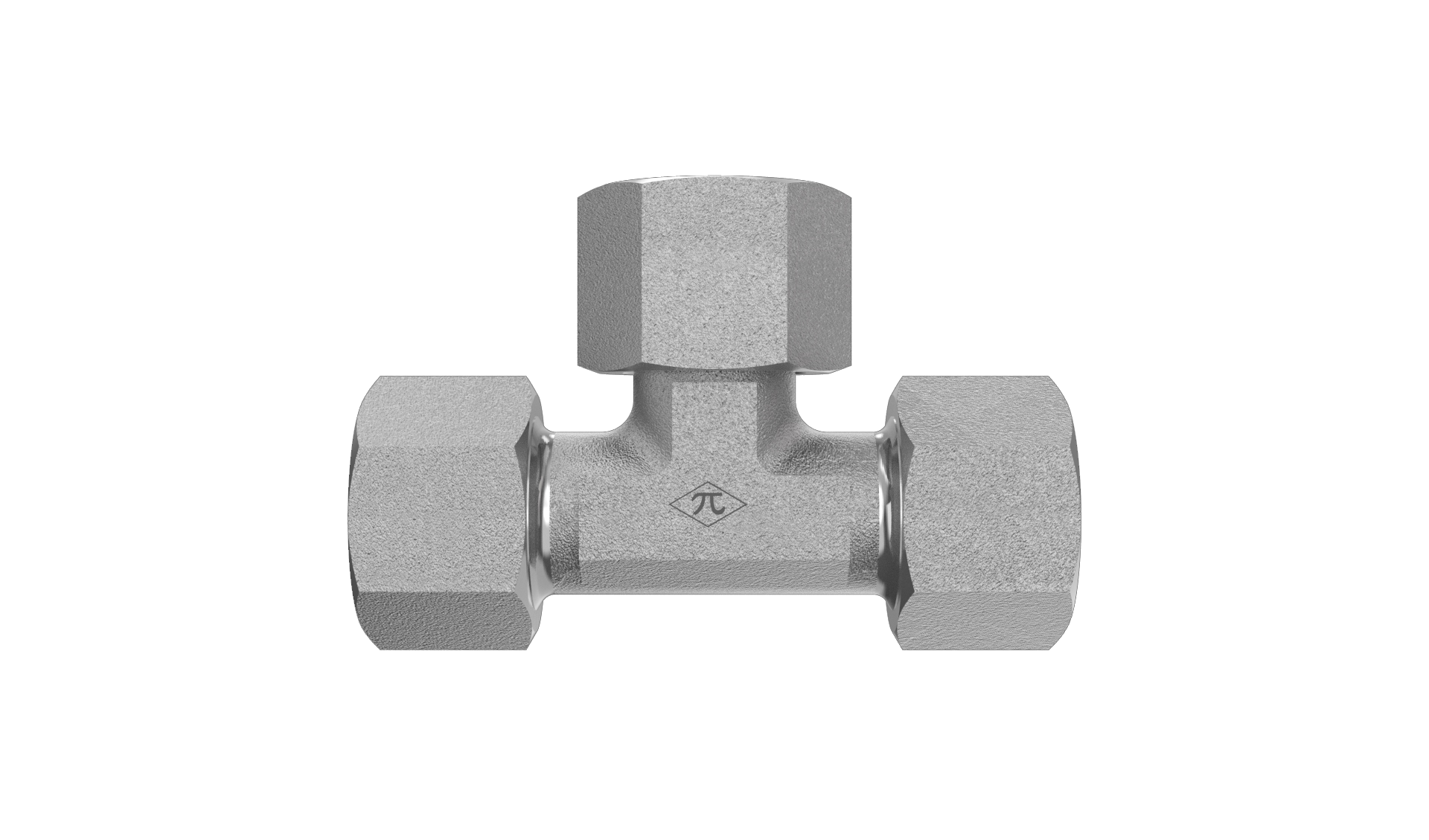

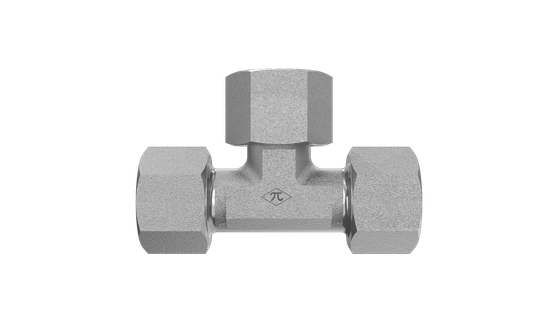

D6600-S38-S38-S38

38mm DIN Tube x 38mm DIN Tube x 38mm Female Metric Swivel

D6600-S38-S38-S38 is a 38mm DIN Tube x 38mm DIN Tube x 38mm Female Metric Swivel in the D6600 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the branch of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Branch Tee
$346.29
(0) Write a Review
SKU:
D6600-S38-S38-S38

Product Details

Connection A
TypeDIN Tube
Tube OD38mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeDIN Tube
Tube OD38mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection C
TypeFemale Metric Swivel
Size38mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight4.50 lb
ShapeSwivel Branch Tee
Cross References
ParkerET38SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
