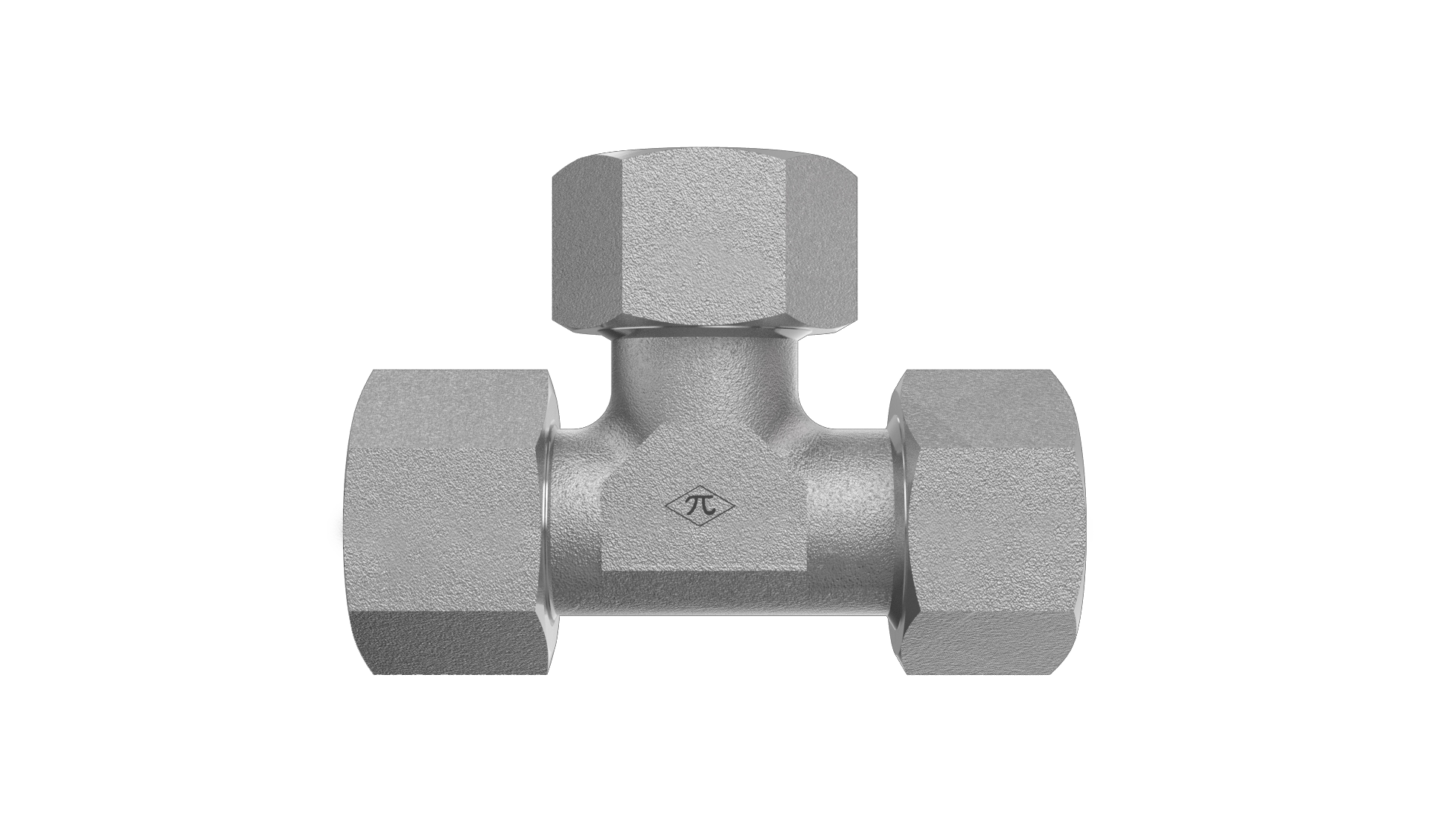

D6602 product image

D6602-L08-L08-L08

8mm DIN Tube x 8mm Female Metric Swivel x 8mm DIN Tube

D6602-L08-L08-L08 is a 8mm DIN Tube x 8mm Female Metric Swivel x 8mm DIN Tube in the D6602 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the run of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Run Tee
$34.20
(0) Write a Review
SKU:
D6602-L08-L08-L08

Product Details

Connection A
TypeDIN Tube
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection B
TypeFemale Metric Swivel
Size8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection C
TypeDIN Tube
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.19 lb
ShapeSwivel Run Tee
Cross References
ParkerEL08LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
