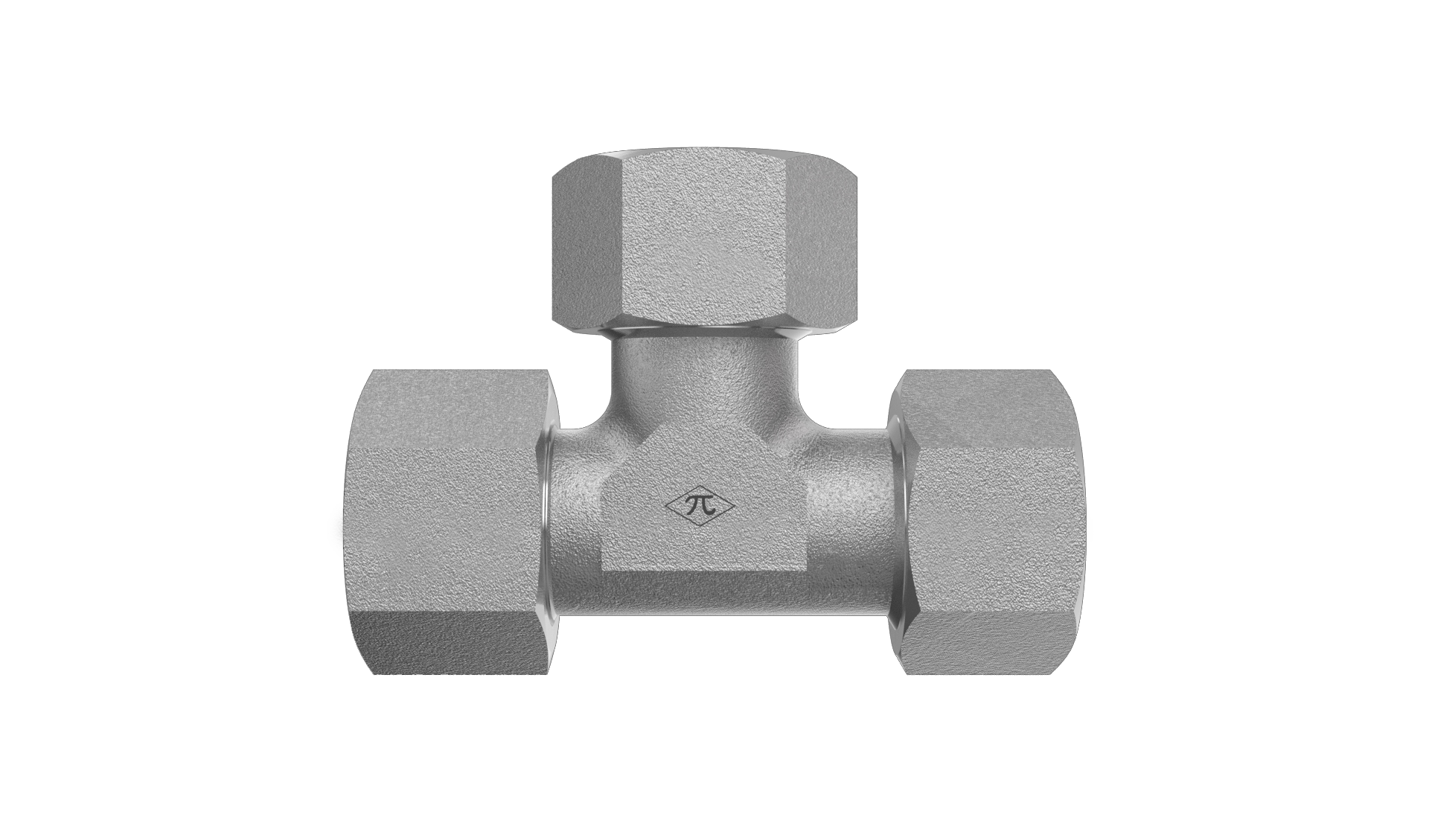

D6602-L12-L12-L12

12mm DIN Tube x 12mm Female Metric Swivel x 12mm DIN Tube

D6602-L12-L12-L12 is a 12mm DIN Tube x 12mm Female Metric Swivel x 12mm DIN Tube in the D6602 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the run of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Run Tee
$41.92
(0) Write a Review
SKU:
D6602-L12-L12-L12

Product Details

Connection A
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeFemale Metric Swivel
Size12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection C
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.33 lb
ShapeSwivel Run Tee
Cross References
ParkerEL12LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
