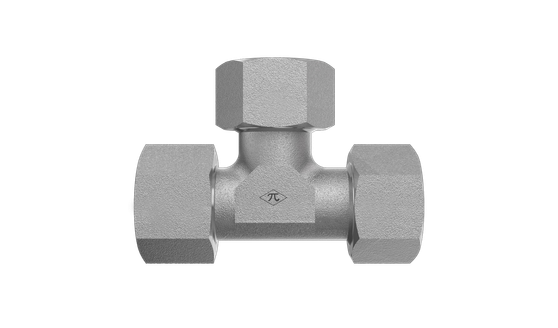

D6602 product image

D6602-L22-L22-L22

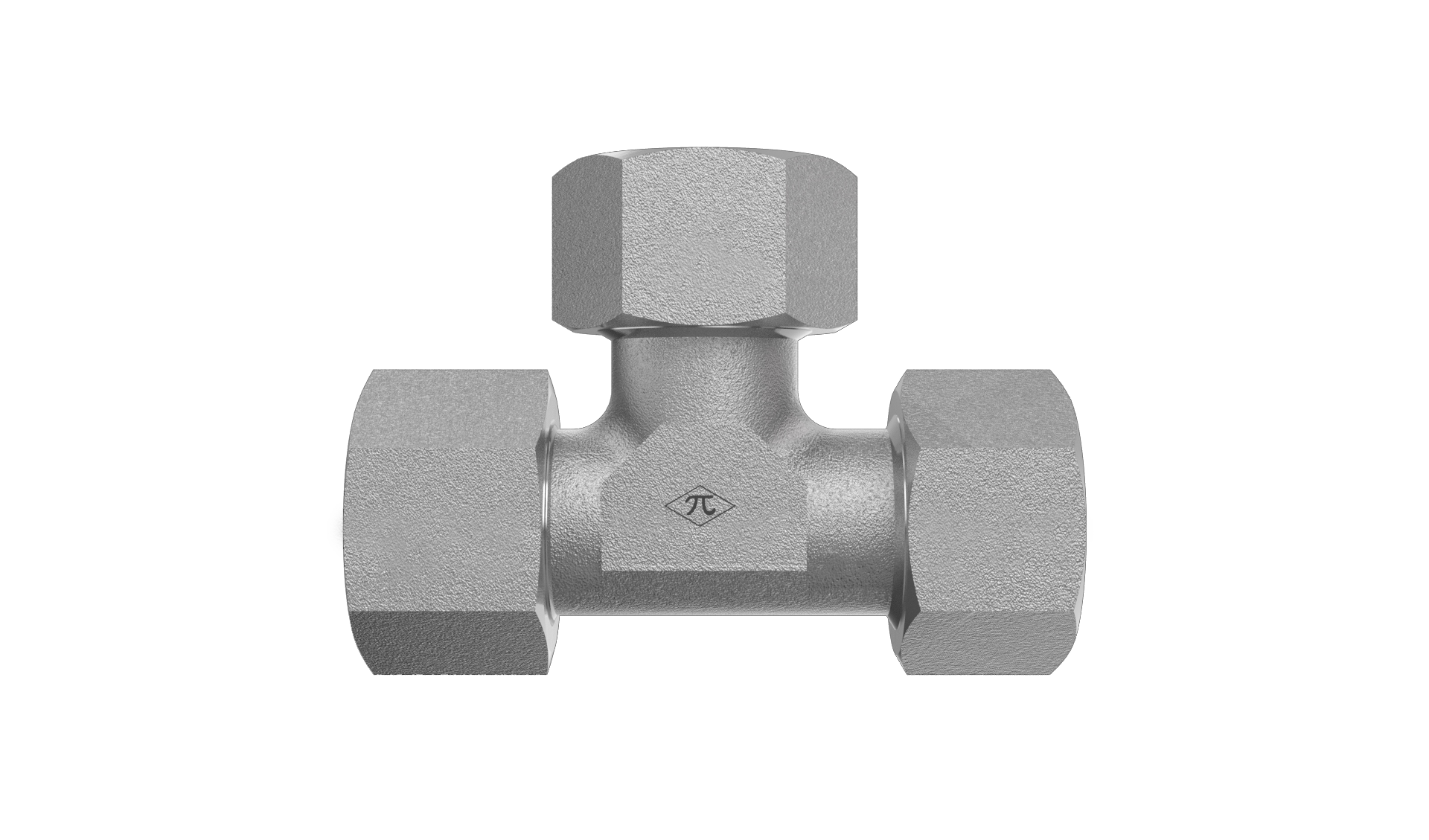

22mm DIN Tube x 22mm Female Metric Swivel x 22mm DIN Tube

D6602-L22-L22-L22 is a 22mm DIN Tube x 22mm Female Metric Swivel x 22mm DIN Tube in the D6602 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the run of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Run Tee
$108.00
(0) Write a Review
SKU:
D6602-L22-L22-L22

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection B
TypeFemale Metric Swivel
Size22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection C
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM30X2.0
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight1.07 lb
ShapeSwivel Run Tee
Cross References
ParkerEL22LCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
