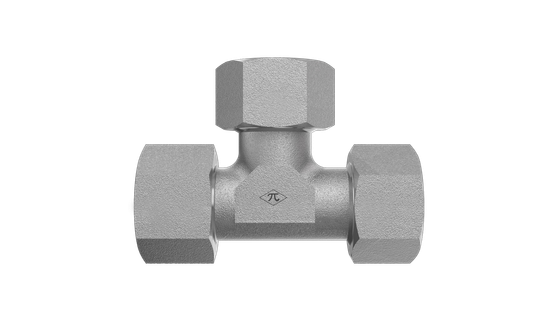

D6602-L42-L42-L42-SS

42mm DIN Tube x 42mm Female Metric Swivel x 42mm DIN Tube

D6602-L42-L42-L42-SS is a 42mm DIN Tube x 42mm Female Metric Swivel x 42mm DIN Tube in the D6602 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the run of the tee.

  • Stainless Steel
  • Swivel Run Tee
  • None
$1,785.04
(0) Write a Review
SKU:
D6602-L42-L42-L42-SS

Product Details

Connection A
TypeDIN Tube
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection B
TypeFemale Metric Swivel
Size42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection C
TypeDIN Tube
Tube OD42mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM52X2.0
Connection D
Specifications
MaterialStainless Steel
Weight3.34 lb
ShapeSwivel Run Tee
PlatingNone
Cross References
ParkerEL42L71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
