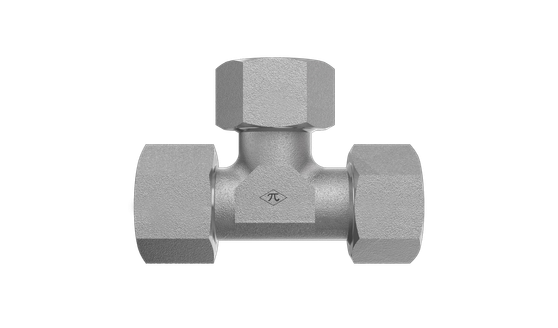

D6602-S12-S12-S12-SS

12mm DIN Tube x 12mm Female Metric Swivel x 12mm DIN Tube

D6602-S12-S12-S12-SS is a 12mm DIN Tube x 12mm Female Metric Swivel x 12mm DIN Tube in the D6602 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the run of the tee.

  • Stainless Steel
  • Swivel Run Tee
  • None
$234.76
(0) Write a Review
SKU:
D6602-S12-S12-S12-SS

Product Details

Connection A
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection B
TypeFemale Metric Swivel
Size12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection C
TypeDIN Tube
Tube OD12mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.50 lb
ShapeSwivel Run Tee
PlatingNone
Cross References
ParkerEL12S71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
