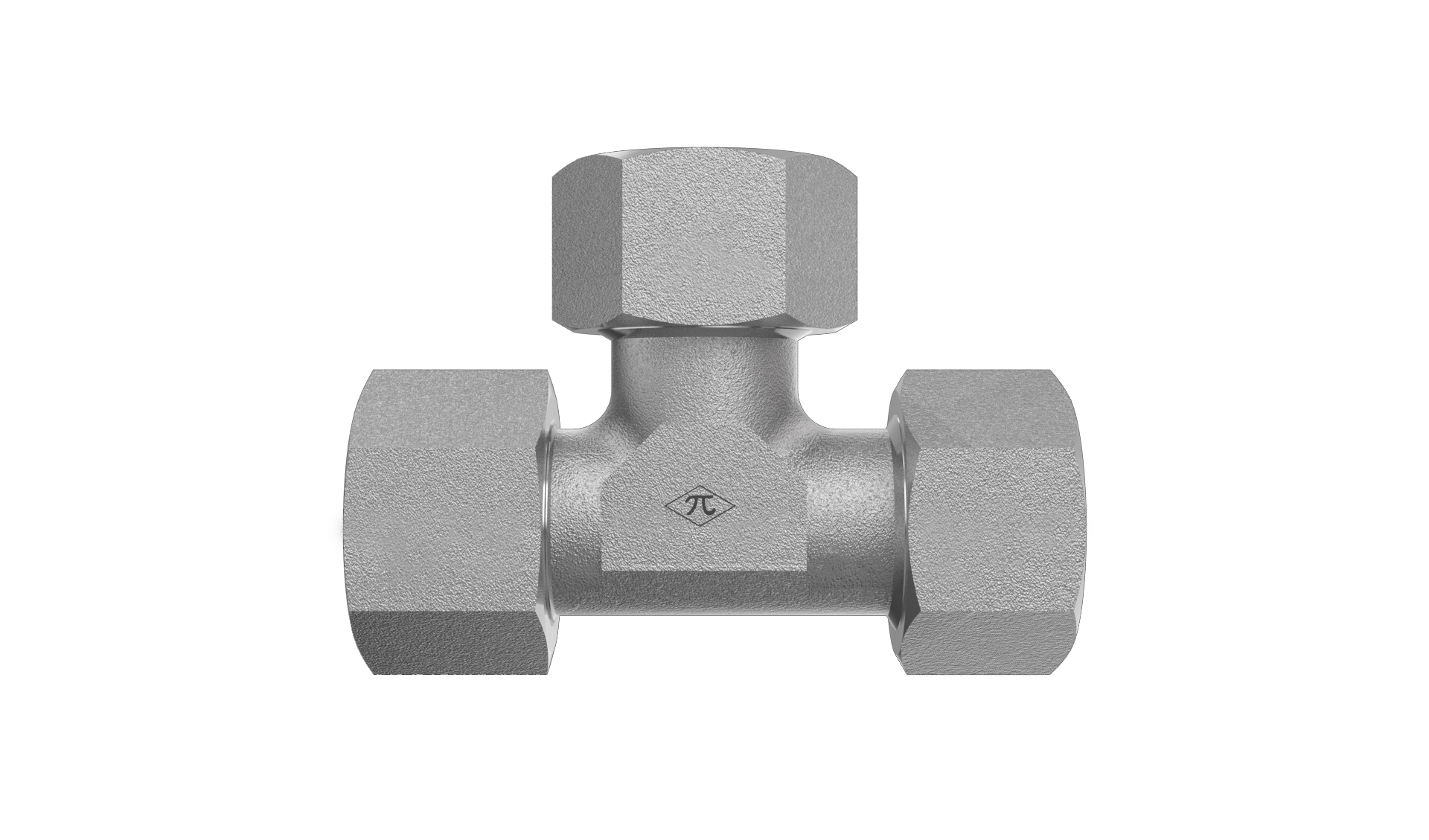

D6602-S16-S16-S16-SS-X

16mm Male DIN x 16mm Female Metric Swivel x 16mm Male DIN

D6602-S16-S16-S16-SS-X is a 16mm Male DIN x 16mm Female Metric Swivel x 16mm Male DIN in the D6602-X Series. For branching two metric tubes or lines, already containing nuts and cutting rings, to a male DIN 2353 connector on the run of the tee.

  • Stainless Steel
  • Swivel Run Tee
  • None
$317.34
(0) Write a Review
SKU:
D6602-S16-S16-S16-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeFemale Metric Swivel
Size16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
TypeMale DIN
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection D
Specifications
MaterialStainless Steel
Weight0.41 lb
ShapeSwivel Run Tee
PlatingNone
Cross References
ParkerEL16SOMD71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
