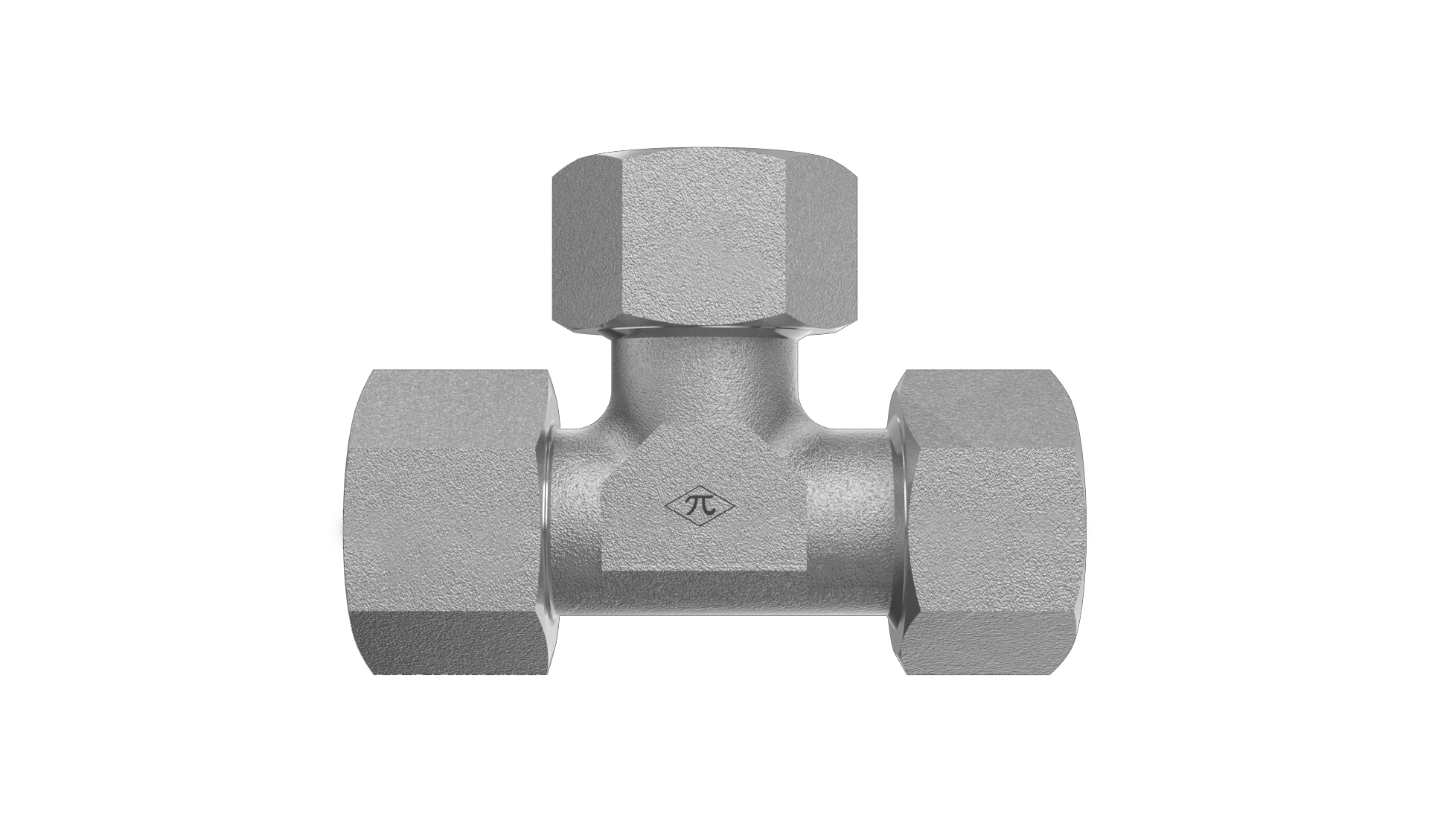

D6602 product image

D6602-S16-S16-S16

16mm DIN Tube x 16mm Female Metric Swivel x 16mm DIN Tube

D6602-S16-S16-S16 is a 16mm DIN Tube x 16mm Female Metric Swivel x 16mm DIN Tube in the D6602 Series. For branching two metric tubes or lines, to a male DIN 2353 connector on the run of the tee.

  • Steel
  • Zinc Nickel
  • Swivel Run Tee
$80.49
(0) Write a Review
SKU:
D6602-S16-S16-S16

Product Details

Connection A
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection B
TypeFemale Metric Swivel
Size16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection C
TypeDIN Tube
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Thread TypeM24X1.5
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.85 lb
ShapeSwivel Run Tee
Cross References
ParkerEL16SCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
