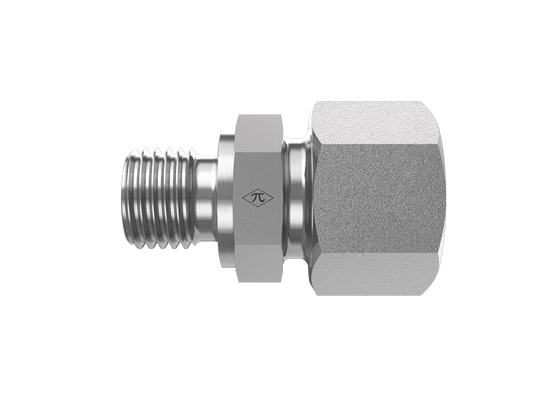

D7400-CF series product image

D7400-L12-12-CF

12mm DIN Tube x 3/4" Male BSPP Cut Face

D7400-L12-12-CF is a 12mm DIN Tube x 3/4" Male BSPP Cut Face in the D7400-CF Series. For connecting metric tube or line to BSPP port.

  • Steel
  • Zinc Nickel
  • Male Connector
$27.88
(0) Write a Review
SKU:
D7400-L12-12-CF

Product Details

Connection A
TypeDIN Tube
Tube OD12mm
StandardSAE J514
Thread TypeM18X1.5
Connection B
TypeMale BSPP Cut Face
Pipe Size3/4"
StandardISO 1179
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.35 lb
ShapeMale Connector
Cross References
ParkerGE12LR3/4CF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
