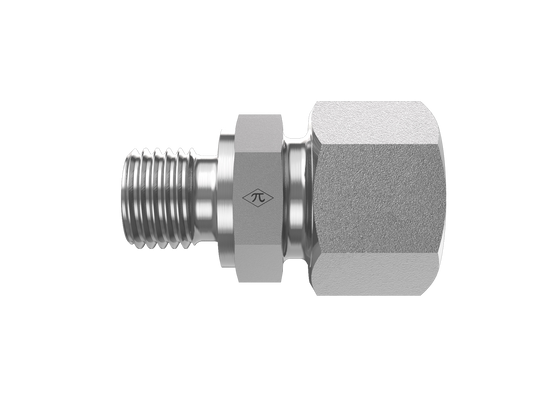

D7400-CF series product image

D7400-L28-20-CF

28mm DIN Tube x 1-1/4" Male BSPP Cut Face

D7400-L28-20-CF is a 28mm DIN Tube x 1-1/4" Male BSPP Cut Face in the D7400-CF Series. For connecting metric tube or line to BSPP port.

  • Steel
  • Zinc Nickel
  • Male Connector
$91.62
(0) Write a Review
SKU:
D7400-L28-20-CF

Product Details

Connection A
TypeDIN Tube
Tube OD28mm
StandardSAE J514
Thread TypeM36X2.0
Connection B
TypeMale BSPP Cut Face
Pipe Size1-1/4"
StandardISO 1179
Thread TypeM36X2.0
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.88 lb
ShapeMale Connector
Cross References
ParkerGE28LR11/4CF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
