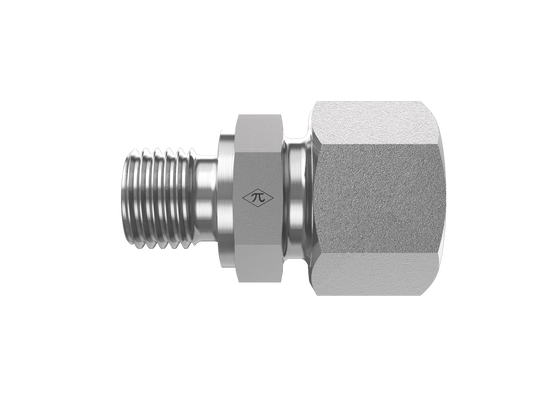

D7400-CF series product image

D7400-S08-04-CF

8mm DIN Tube x 1/4" Male BSPP Cut Face

D7400-S08-04-CF is a 8mm DIN Tube x 1/4" Male BSPP Cut Face in the D7400-CF Series. For connecting metric tube or line to BSPP port.

  • Steel
  • Zinc Nickel
  • Male Connector
$6.21
(0) Write a Review
SKU:
D7400-S08-04-CF

Product Details

Connection A
TypeDIN Tube
Tube OD8mm
StandardSAE J514
Thread TypeM16X1.5
Connection B
TypeMale BSPP Cut Face
Pipe Size1/4"
StandardISO 1179
Thread TypeM16X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.15 lb
ShapeMale Connector
Cross References
ParkerGE08SRCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
