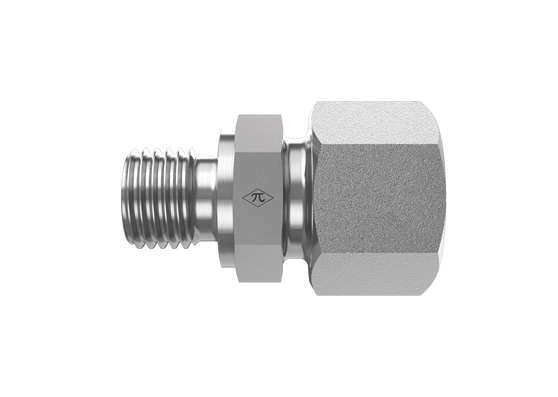

D7400-CF series product image

D7400-S14-04-CF

14mm DIN Tube x 1/4" Male BSPP Cut Face

D7400-S14-04-CF is a 14mm DIN Tube x 1/4" Male BSPP Cut Face in the D7400-CF Series. For connecting metric tube or line to BSPP port.

  • Steel
  • Zinc Nickel
  • Male Connector
$117.57
(0) Write a Review
SKU:
D7400-S14-04-CF

Product Details

Connection A
TypeDIN Tube
Tube OD14mm
StandardSAE J514
Thread TypeM22X1.5
Connection B
TypeMale BSPP Cut Face
Pipe Size1/4"
StandardISO 1179
Thread TypeM22X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingZinc Nickel
Weight0.27 lb
ShapeMale Connector
Cross References
ParkerGE14SR1/4CF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
