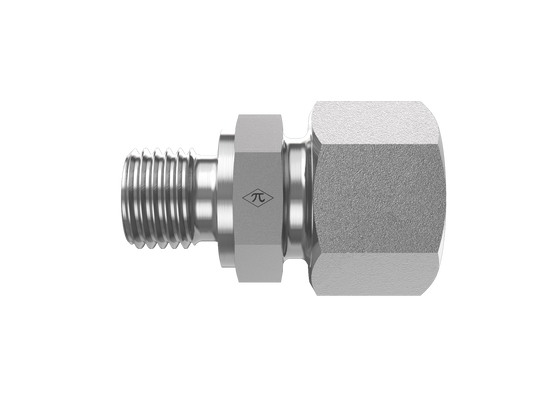

D7400-CF series product image

D7400-S20-12-CF-SS

20mm DIN Tube x 3/4" Male BSPP Cut Face

D7400-S20-12-CF-SS is a 20mm DIN Tube x 3/4" Male BSPP Cut Face in the D7400-CF Series. For connecting metric tube or line to BSPP port.

  • Stainless Steel
  • Male Connector
  • None
$142.63
(0) Write a Review
SKU:
D7400-S20-12-CF-SS

Product Details

Connection A
TypeDIN Tube
Tube OD20mm
StandardSAE J514
Thread TypeM30X2.0
Connection B
TypeMale BSPP Cut Face
Pipe Size3/4"
StandardISO 1179
Thread TypeM30X2.0
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight0.64 lb
ShapeMale Connector
PlatingNone
Cross References
ParkerGE20SR71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
