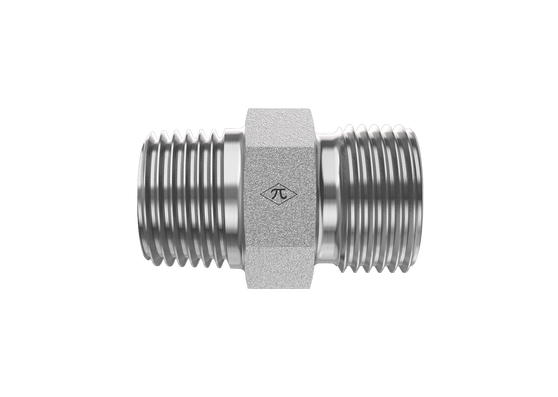

D7404-X series product image

D7404-S16-08-SS-X

16mm Male DIN x 1/2" Male BSPT

D7404-S16-08-SS-X is a 16mm Male DIN x 1/2" Male BSPT in the D7404-X Series. For connecting metric tube or line, already containing nut and cutting ring, to female BSPT connector.

  • Stainless Steel
  • None
  • Straight
$90.49
(0) Write a Review
SKU:
D7404-S16-08-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD16mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale BSPT
Pipe Size1/2"
StandardISO 7-1
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
