D7405-L06-04GP

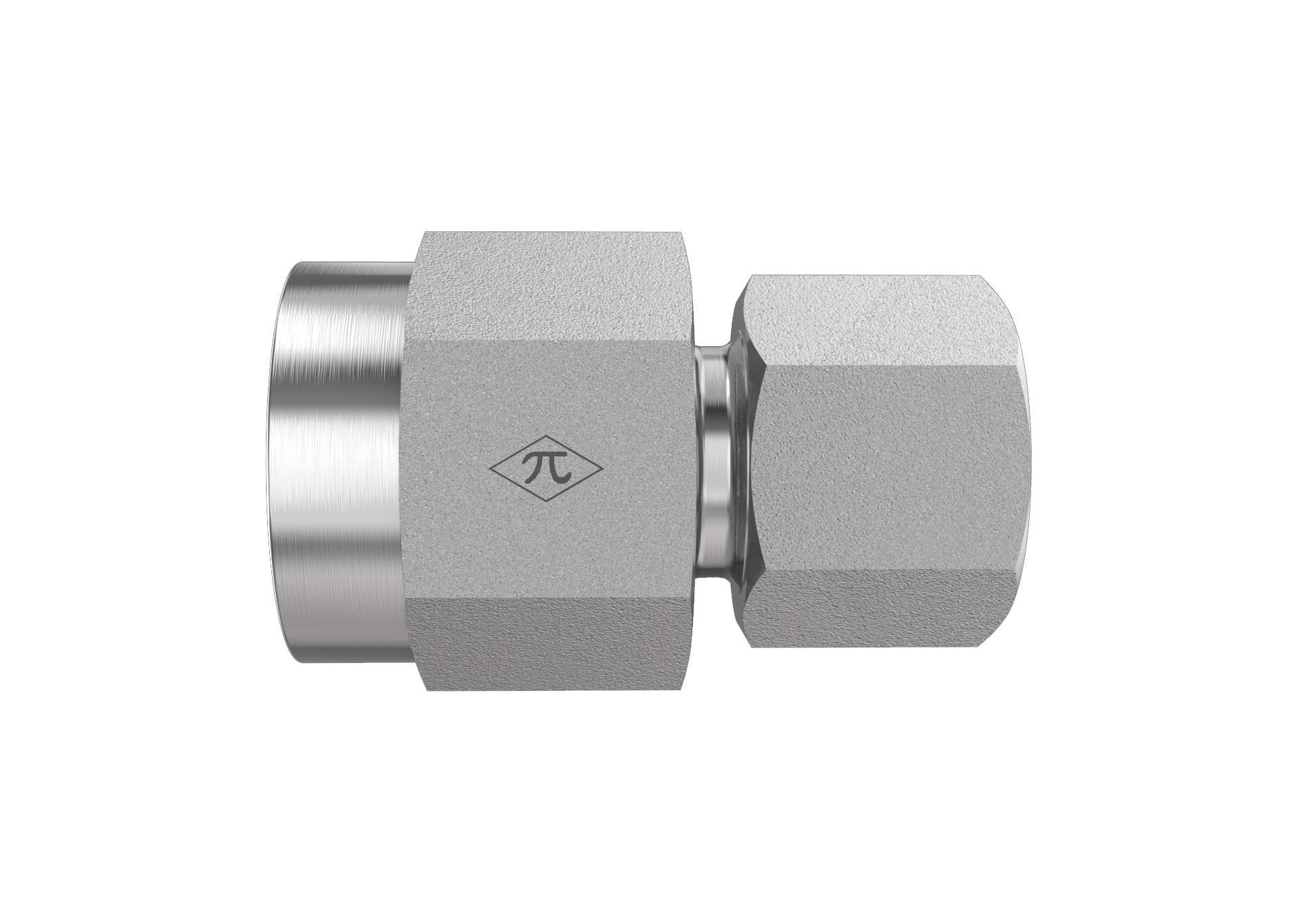

6mm Light DIN Tube x 1/4" Female BSPP Direct Gauge Port

D7405-L06-04GP is a 6mm Light DIN Tube x 1/4" Female BSPP Direct Gauge Port in the D7405-GP Series. For connecting metric tube or line to male BSPP gauge.

  • Steel
  • Trivalent Zinc
  • Female Connector
$10.65
(0) Write a Review
SKU:
D7405-L06-04GP

Product Details

Connection A
TypeDIN Tube
Tube OD6mm Light
StandardDIN 2353 / ISO 8434-1
Thread TypeM12X1.5
Connection B
TypeFemale BSPP Direct Gauge Port
StandardISO 1179
Port Size1/4"
Thread TypeM12X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
ShapeFemale Connector
Cross References
ParkerMAV06LRCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
