D7405-S10-08GP-SS

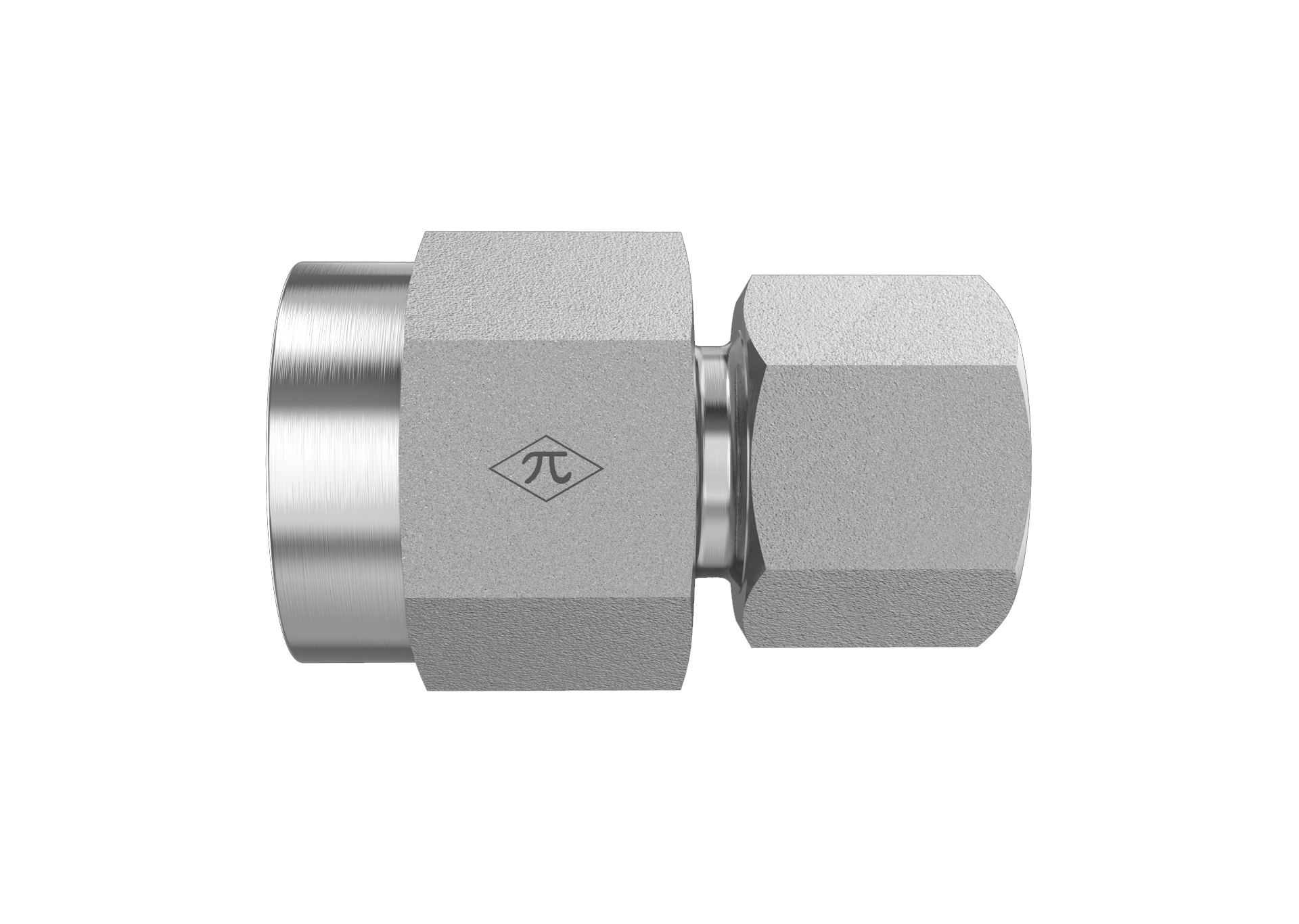

10mm Heavy DIN Tube x 1/2" Female BSPP Direct Gauge Port

D7405-S10-08GP-SS is a 10mm Heavy DIN Tube x 1/2" Female BSPP Direct Gauge Port in the D7405-GP Series. For connecting metric tube or line to male BSPP gauge.

  • Stainless Steel
  • Female Connector
  • None
$84.96
(0) Write a Review
SKU:
D7405-S10-08GP-SS

Product Details

Connection A
TypeDIN Tube
Tube OD10mm Heavy
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeFemale BSPP Direct Gauge Port
StandardISO 1179
Port Size1/2"
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1 lb
ShapeFemale Connector
PlatingNone
Cross References
ParkerMAV10SR71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
