D7405-S10-08GP

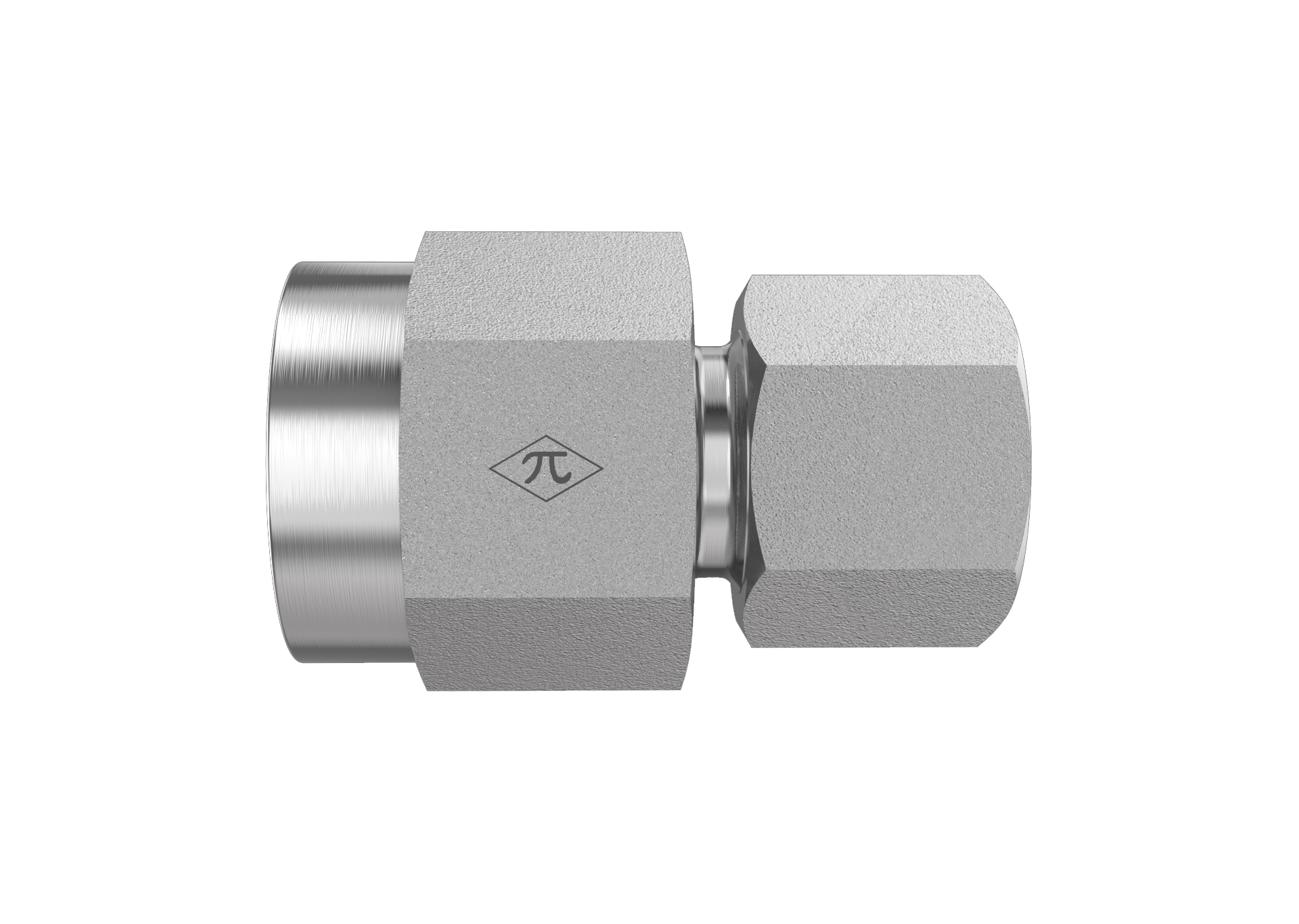

10mm Heavy DIN Tube x 1/2" Female BSPP Direct Gauge Port

D7405-S10-08GP is a 10mm Heavy DIN Tube x 1/2" Female BSPP Direct Gauge Port in the D7405-GP Series. For connecting metric tube or line to male BSPP gauge.

  • Steel
  • Trivalent Zinc
  • Female Connector
$20.31
(0) Write a Review
SKU:
D7405-S10-08GP

Product Details

Connection A
TypeDIN Tube
Tube OD10mm Heavy
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeFemale BSPP Direct Gauge Port
StandardISO 1179
Port Size1/2"
Thread TypeM18X1.5
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
ShapeFemale Connector
Cross References
ParkerMAV10SRCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
