D7506-L08-04GP-SS

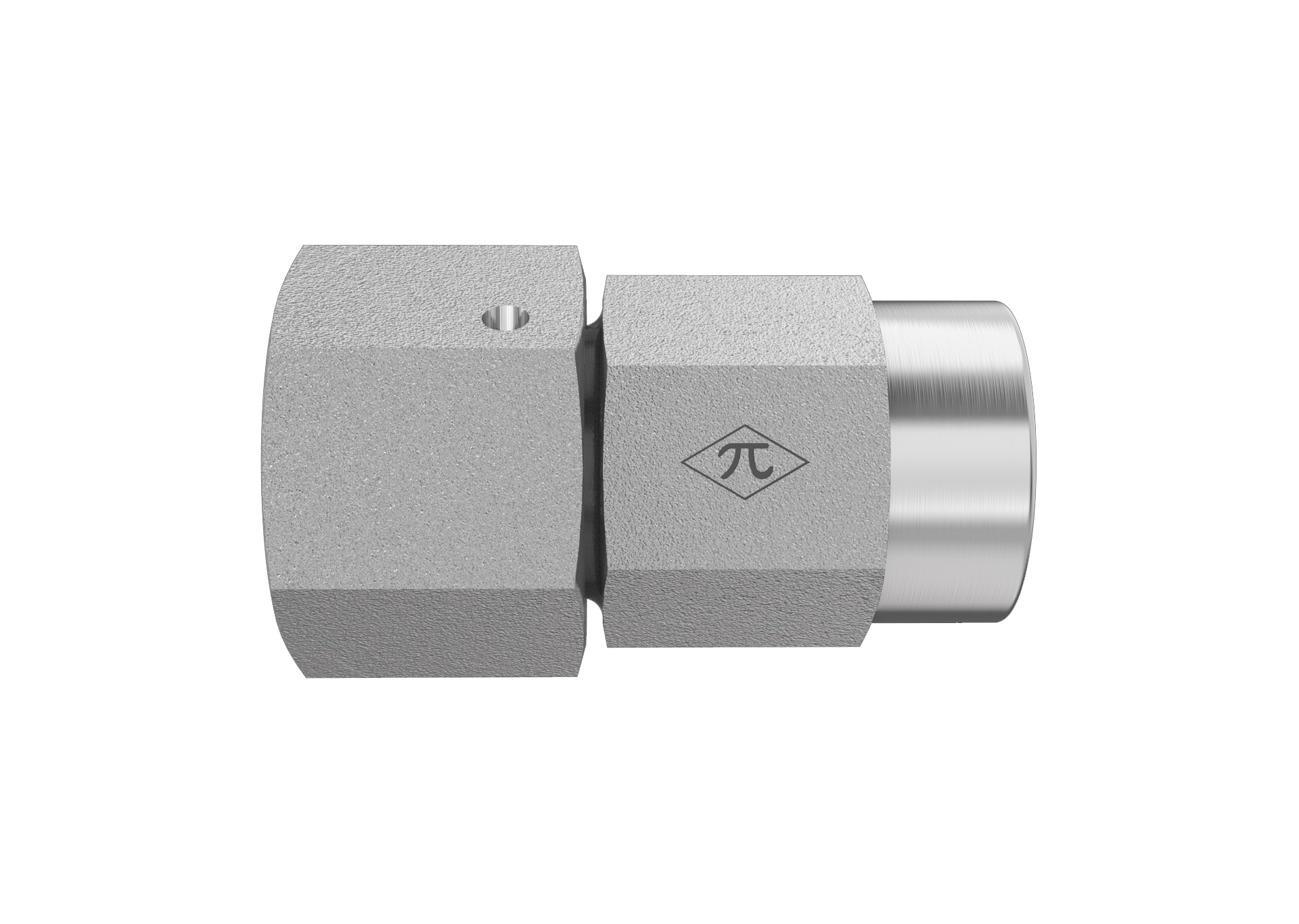

8mm Light Female Standpipe x 1/4" Female BSPP Direct Gauge Port

D7506-L08-04GP-SS is a 8mm Light Female Standpipe x 1/4" Female BSPP Direct Gauge Port in the D7506-GP Series. For connecting male DIN 2353 connector to male BSSP gauge.

  • Stainless Steel
  • Female Swivel Connector
  • None
$66.23
(0) Write a Review
SKU:
D7506-L08-04GP-SS

Product Details

Connection A
TypeFemale Standpipe
Pipe Size8mm Light
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection B
TypeFemale BSPP Direct Gauge Port
StandardISO 1179
Thread TypeM14X1.5
Port Size1/4"
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1 lb
ShapeFemale Swivel Connector
PlatingNone
Cross References
ParkerMAVE08LR71

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
