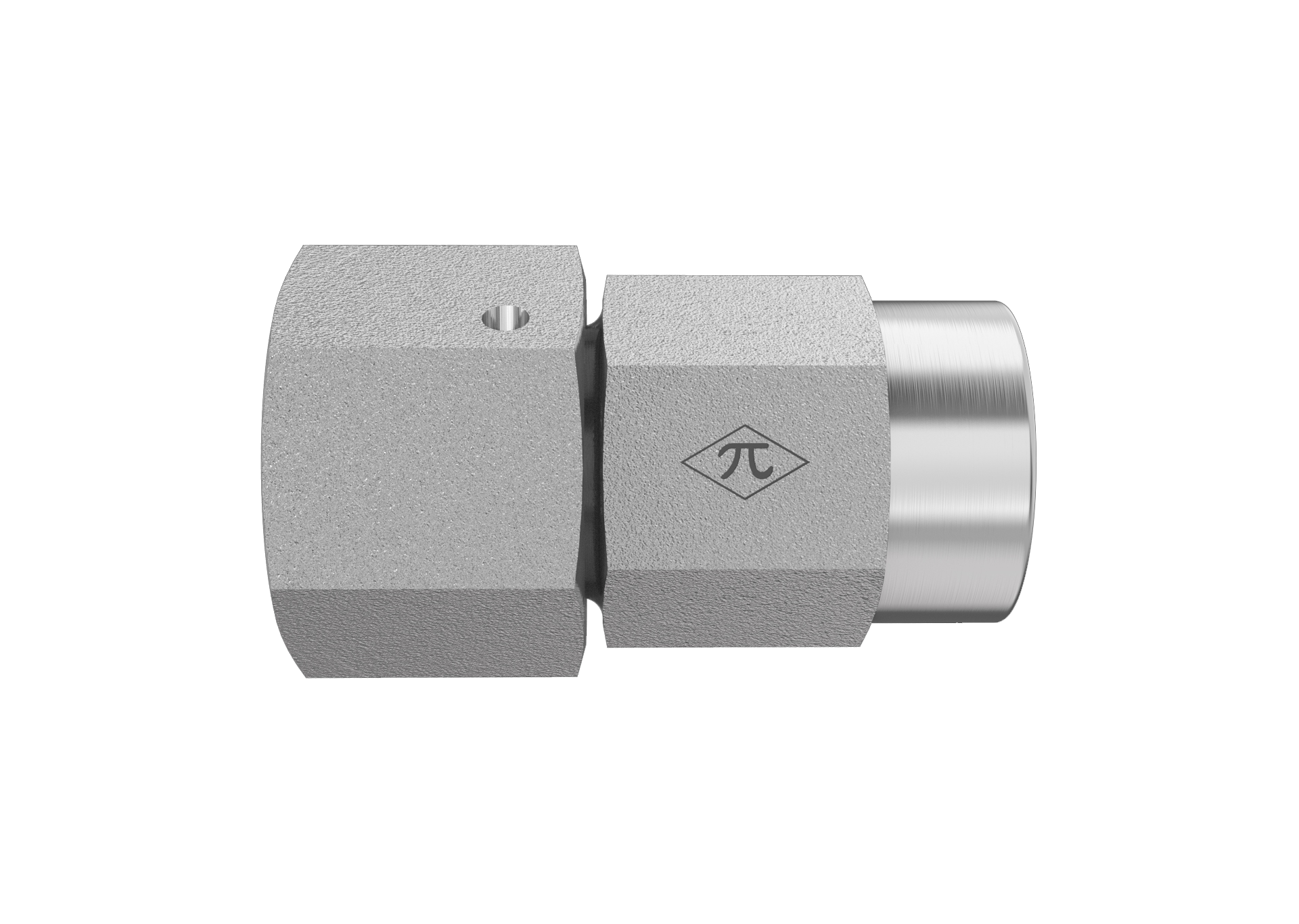

D7506-S06-04GP

6mm Heavy Female Standpipe x 1/4" Female BSPP Direct Gauge Port

D7506-S06-04GP is a 6mm Heavy Female Standpipe x 1/4" Female BSPP Direct Gauge Port in the D7506-GP Series. For connecting male DIN 2353 connector to male BSSP gauge.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$71.07
(0) Write a Review
SKU:
D7506-S06-04GP

Product Details

Connection A
TypeFemale Standpipe
Pipe Size6mm Heavy
StandardDIN 2353 / ISO 8434-1
Thread TypeM14X1.5
Connection B
TypeFemale BSPP Direct Gauge Port
StandardISO 1179
Thread TypeM14X1.5
Port Size1/4"
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
ShapeFemale Swivel Connector
Cross References
ParkerMAVE06SR1/4CF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
