D7506-S10-08GP

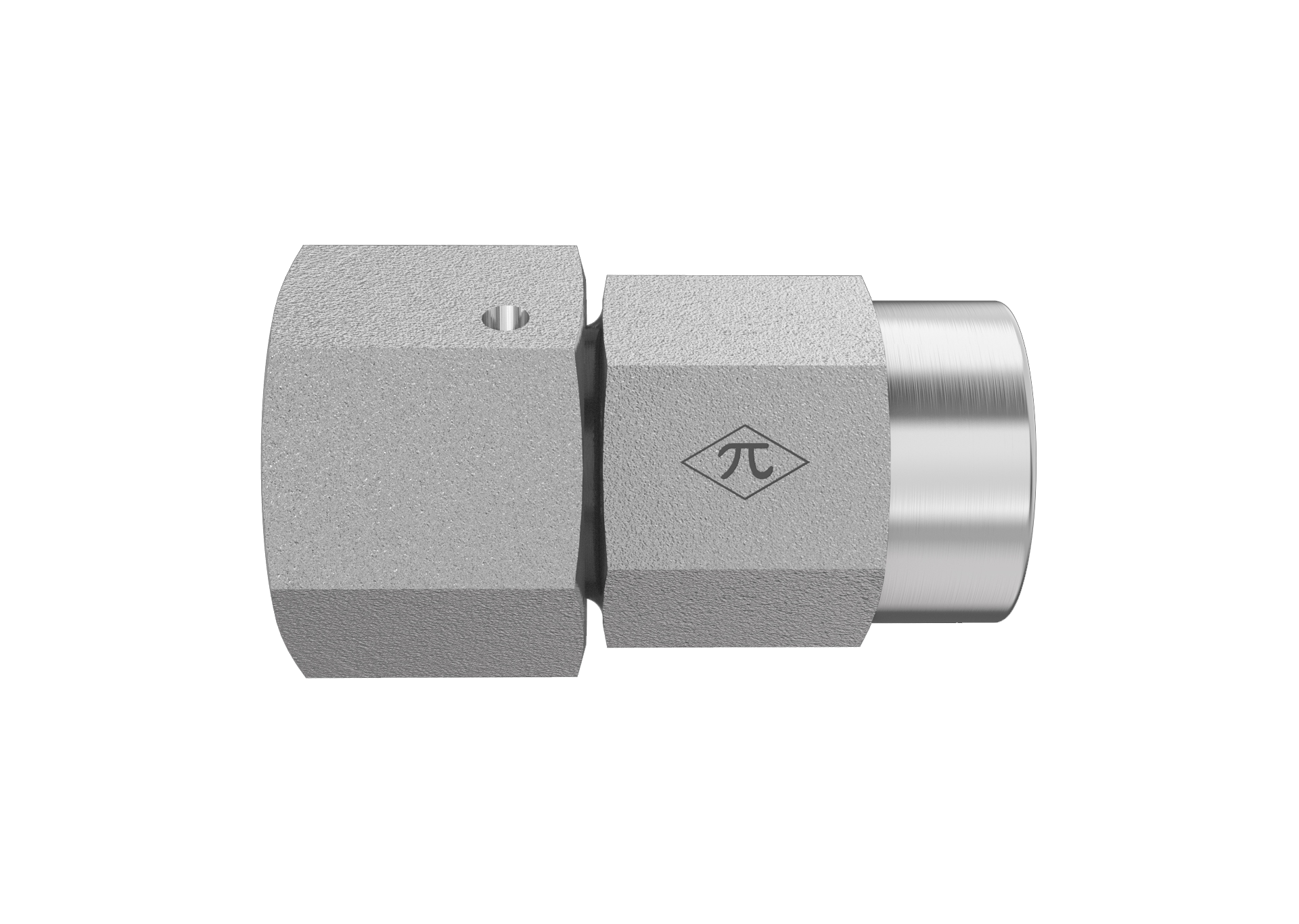

10mm Heavy Female Standpipe x 1/2" Female BSPP Direct Gauge Port

D7506-S10-08GP is a 10mm Heavy Female Standpipe x 1/2" Female BSPP Direct Gauge Port in the D7506-GP Series. For connecting male DIN 2353 connector to male BSSP gauge.

  • Steel
  • Trivalent Zinc
  • Female Swivel Connector
$31.98
(0) Write a Review
SKU:
D7506-S10-08GP

Product Details

Connection A
TypeFemale Standpipe
Pipe Size10mm Heavy
StandardDIN 2353 / ISO 8434-1
Thread TypeM18X1.5
Connection B
TypeFemale BSPP Direct Gauge Port
StandardISO 1179
Thread TypeM18X1.5
Port Size1/2"
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Weight1 lb
ShapeFemale Swivel Connector
Cross References
ParkerMAVE10SRCF

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
