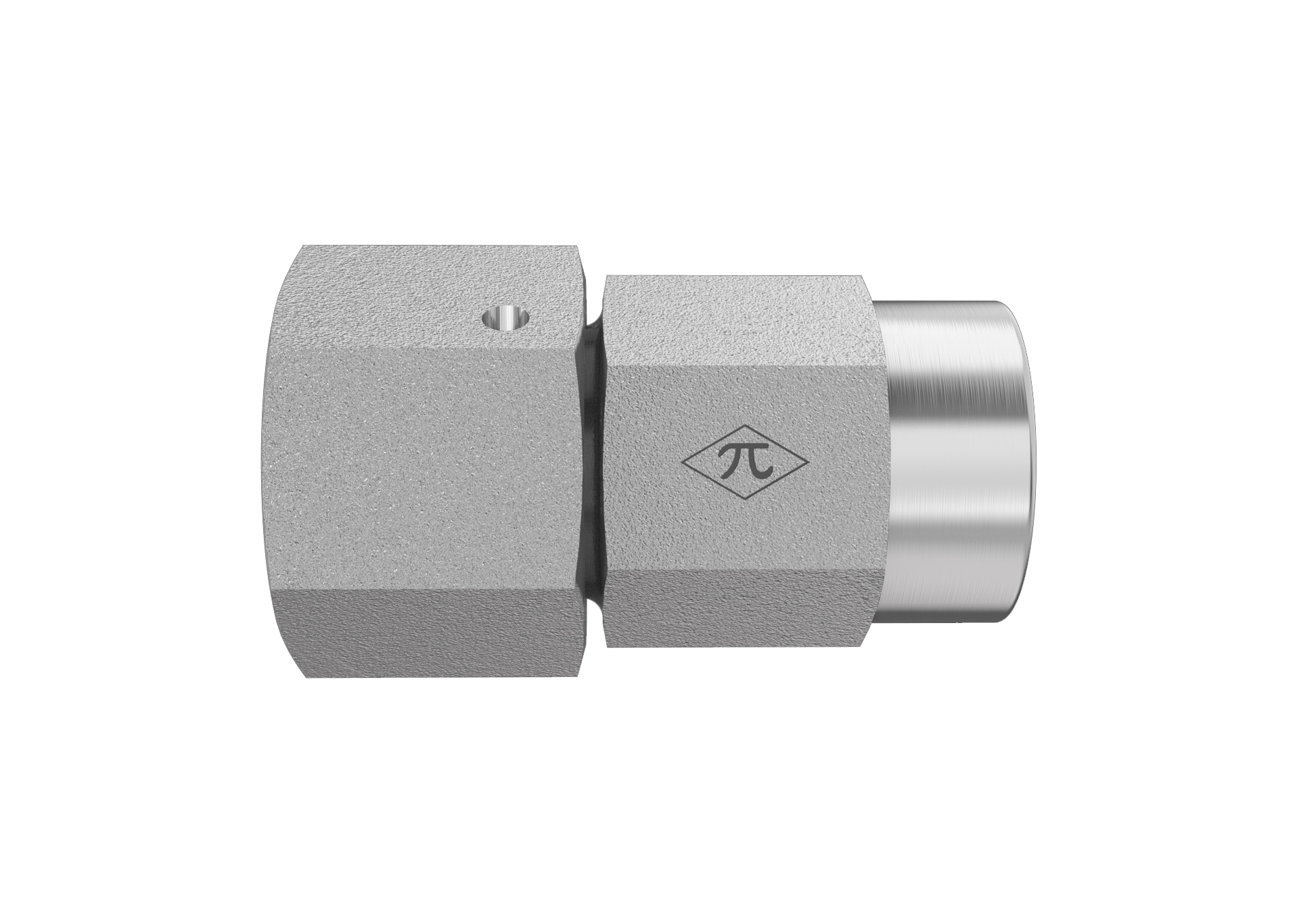

Google Merchant product image

D7506-S12-04GP-SS

12mm Heavy Female Standpipe x 1/4" Female BSPP Direct Gauge Port

D7506-S12-04GP-SS is a 12mm Heavy Female Standpipe x 1/4" Female BSPP Direct Gauge Port in the D7506-GP Series. For connecting male DIN 2353 connector to male BSSP gauge.

  • Stainless Steel
  • Female Swivel Connector
  • None
$107.32
(0) Write a Review
SKU:
D7506-S12-04GP-SS

Product Details

Connection A
TypeFemale Standpipe
Pipe Size12mm Heavy
StandardDIN 2353 / ISO 8434-1
Thread TypeM20X1.5
Connection B
TypeFemale BSPP Direct Gauge Port
StandardISO 1179
Thread TypeM20X1.5
Port Size1/4"
Connection C
Connection D
Specifications
MaterialStainless Steel
Weight1 lb
ShapeFemale Swivel Connector
PlatingNone
Cross References
ParkerMAVE12SR1/471

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
