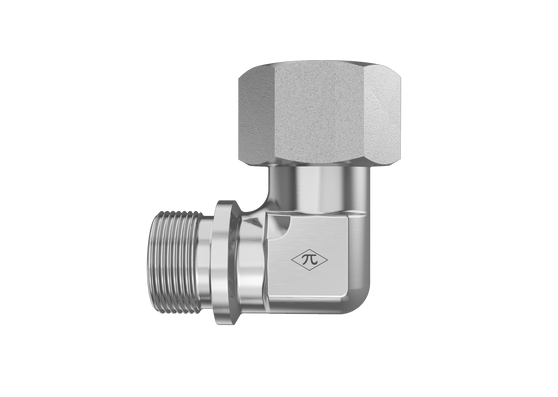

D7801-CF series product image

D7801-L22-12-CF-SS

22mm DIN Tube x 3/4" Male BSPP Cut Face

D7801-L22-12-CF-SS is a 22mm DIN Tube x 3/4" Male BSPP Cut Face in the D7801-CF Series. For connecting metric tube or line to BSPP port at a 90° angle.

  • Stainless Steel
  • None
  • 90° Elbow
$206.22
(0) Write a Review
SKU:
D7801-L22-12-CF-SS

Product Details

Connection A
TypeDIN Tube
Tube OD22mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale BSPP Cut Face
Pipe Size3/4"
StandardISO 1179
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
Shape90° Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
