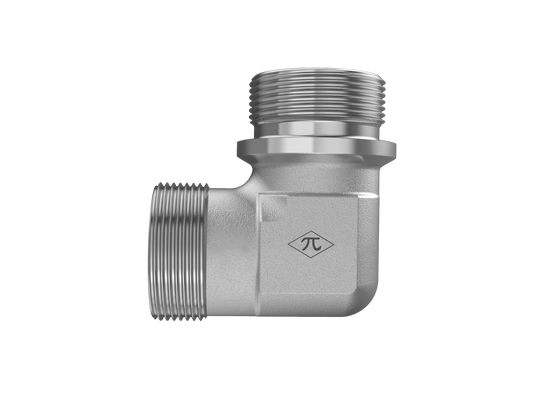

D7801-CF-X series product image

D7801-S25-16-CF-X

25mm Male DIN x 1" Male BSPP Cut Face

D7801-S25-16-CF-X is a 25mm Male DIN x 1" Male BSPP Cut Face in the D7801-CF-X Series. For connecting metric tube or line, already containing nut and cutting ring, to BSPP port at a 90° angle.

  • Steel
  • Trivalent Zinc
  • 90° Elbow
$105.83
(0) Write a Review
SKU:
D7801-S25-16-CF-X

Product Details

Connection A
TypeMale DIN
Tube OD25mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale BSPP Cut Face
Pipe Size1"
StandardISO 1179
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Shape90° Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
