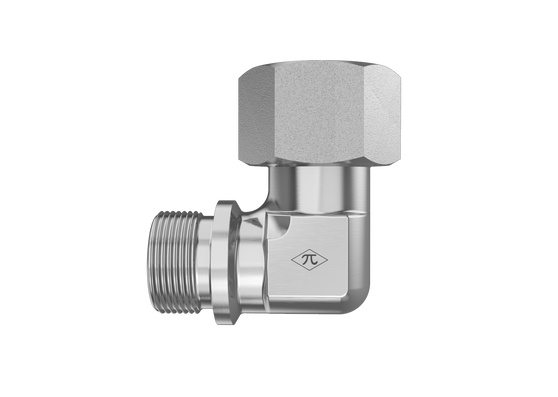

D7801-CF series product image

D7801-S38-24-CF

38mm DIN Tube x 1-1/2" Male BSPP Cut Face

D7801-S38-24-CF is a 38mm DIN Tube x 1-1/2" Male BSPP Cut Face in the D7801-CF Series. For connecting metric tube or line to BSPP port at a 90° angle.

  • Steel
  • Trivalent Zinc
  • 90° Elbow
$158.60
(0) Write a Review
SKU:
D7801-S38-24-CF

Product Details

Connection A
TypeDIN Tube
Tube OD38mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale BSPP Cut Face
Pipe Size1-1/2"
StandardISO 1179
Connection C
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
Shape90° Elbow
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
