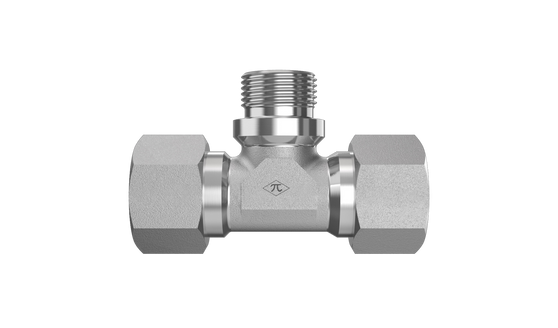

D7803-CF series product image

D7803-L28-L28-16-CF

28mm DIN Tube x 1-11 Male BSPP Cut Face

D7803-L28-L28-16-CF is a 28mm DIN Tube x 1-11 Male BSPP Cut Face in the D7803-CF Series. For branching two metric tubes or lines, to a BSPP port on the branch of the tee.

  • Steel
  • Trivalent Zinc
  • Tee
$231.83
(0) Write a Review
SKU:
D7803-L28-L28-16-CF

Product Details

Connection A
TypeDIN Tube
Tube OD28mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD28mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeMale BSPP Cut Face
Pipe Size1"
StandardISO 1179
Connection D
Specifications
MaterialSteel
PlatingTrivalent Zinc
ShapeTee
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
