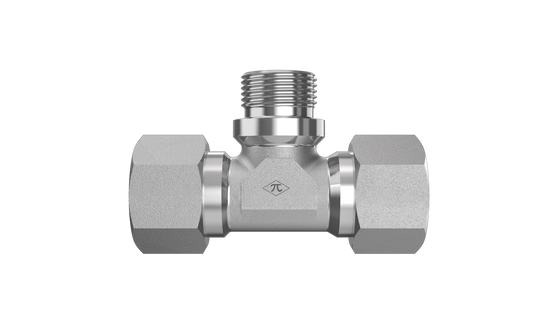

D7803-S30-S30-20-CF-SS

30mm DIN Tube x 1-1/4-11 Male BSPP Cut Face

D7803-S30-S30-20-CF-SS is a 30mm DIN Tube x 1-1/4-11 Male BSPP Cut Face in the D7803-CF Series. For branching two metric tubes or lines, to a BSPP port on the branch of the tee.

  • Stainless Steel
  • None
  • Tee
$855.39
(0) Write a Review
SKU:
D7803-S30-S30-20-CF-SS

Product Details

Connection A
TypeDIN Tube
Tube OD30mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeDIN Tube
Tube OD30mm
StandardDIN 2353 / ISO 8434-1
Connection C
TypeMale BSPP Cut Face
Pipe Size1-1/4"
StandardISO 1179
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeTee
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
