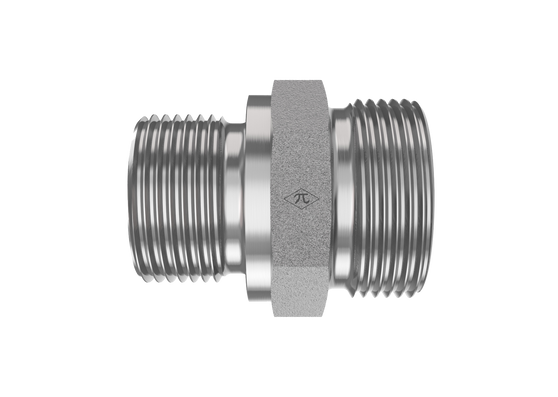

D8400-CF-X series product image

D8400-L08-16-CF-SS-X

8mm Male DIN x M16x1.5 Male Metric Cut Face

D8400-L08-16-CF-SS-X is a 8mm Male DIN x M16x1.5 Male Metric Cut Face in the D8400-CF-X Series. For connecting metric tube or line, already containing nut and cutting ring, to Metric port.

  • Stainless Steel
  • None
  • Straight
$37.41
(0) Write a Review
SKU:
D8400-L08-16-CF-SS-X

Product Details

Connection A
TypeMale DIN
Tube OD8mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Cut Face
Port SizeM16
Thread TypeM16X1.5
StandardISO 9974
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
