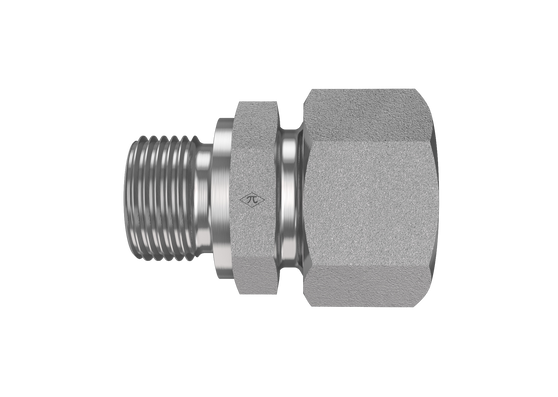

D8400-CF series product image

D8400-S14-20-CF-SS

14mm DIN Tube x M20x1.5 Male Metric Cut Face

D8400-S14-20-CF-SS is a 14mm DIN Tube x M20x1.5 Male Metric Cut Face in the D8400-CF Series. For connecting metric tube or line to Metric port.

  • Stainless Steel
  • None
  • Straight
$84.83
(0) Write a Review
SKU:
D8400-S14-20-CF-SS

Product Details

Connection A
TypeDIN Tube
Tube OD14mm
StandardDIN 2353 / ISO 8434-1
Connection B
TypeMale Metric Cut Face
Port SizeM20
Thread TypeM20X1.5
StandardISO 9974
Connection C
Connection D
Specifications
MaterialStainless Steel
PlatingNone
ShapeStraight
Cross References

Reference data is for selection and comparison. Actual system rating depends on mating components, assembly, media, temperature, and operating conditions.
